LTC3216EDE#PBF - Analog Devices

Description: 1A Low Noise High Current LED Charge-Pump with INDEPENDENT TORCH/FLASH Current Control

Download LTC3216EDE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

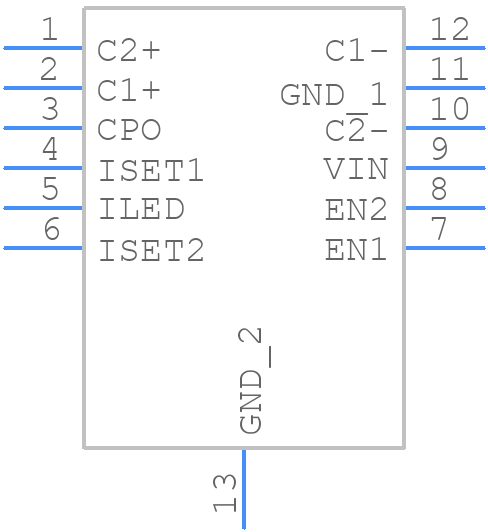

Symbol
LTC3216EDE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3216EDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN
click to zoom
3D Models
LTC3216EDE#PBF - Analog Devices - 3D model - Small Outline No-lead - DE/UE Package 12-Lead Plastic DFN
click to zoom

LTC3216EDE#PBF Details

  • Manufacturer Part Number:

    LTC3216EDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 4 MM, LEAD FREE, PLASTIC, MO-229-WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    4.4 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3216EDE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3216EDE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, avoid using ceramic capacitors with high voltage coefficients.
  • The maximum ambient temperature range for the LTC3216EDE is -40°C to 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Yes, the LTC3216EDE is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device's reliability. Additionally, consider using a vibration-resistant capacitor and ensuring that the PCB is securely fastened to the system.
  • To troubleshoot issues with the LTC3216EDE, start by checking the input and output voltages, and ensuring that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended specifications. Use an oscilloscope to check for any oscillations or noise on the output, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3216EDE#PBF Overview

Use the download button to access the LTC3216EDE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC32, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
