Part Image

LTC3255EMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3255EMSE#PBF - IC, STEP DWN CHARGE PUMP, 500KHZ, MSOP10

Download LTC3255EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

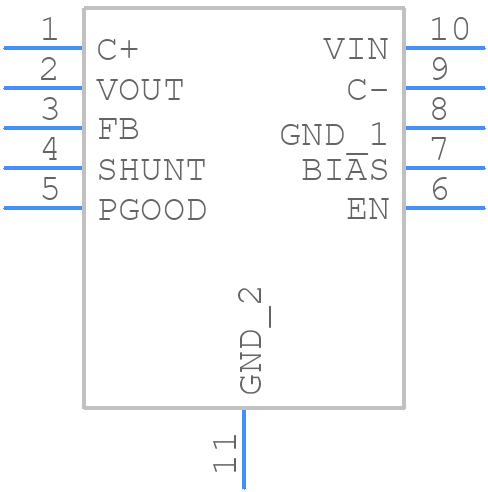

Symbol
LTC3255EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3255EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC3255EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC3255EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3255EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 2.4V TO 12.5V

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    48 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    12.5 V

  • Output Voltage-Min:

    2.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3255EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3255EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3255EMSE, ensure that the input voltage is within the recommended range, use high-quality capacitors with low ESR, and minimize the noise on the input and output lines. Additionally, ensure that the PCB layout is optimized for low noise and good thermal performance.
  • The maximum ambient temperature for the LTC3255EMSE is 85°C, but it can be derated for higher temperatures. Consult the datasheet for more information on temperature derating.
  • Yes, the LTC3255EMSE is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3255EMSE, start by checking the input voltage, output voltage, and current. Ensure that the input and output capacitors are properly connected and of good quality. Check for noise on the input and output lines and ensure that the PCB layout is optimized for low noise. Consult the datasheet and application notes for more troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3255EMSE#PBF Overview

Use the download button to access the LTC3255EMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC32, or try a keyword search, such as Switching Regulator or Controllers
