LTC3256IMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3256IMSE#PBF - CHARGE PUMP, BUCK, 5V/3.3V, MSOP-16

Download LTC3256IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

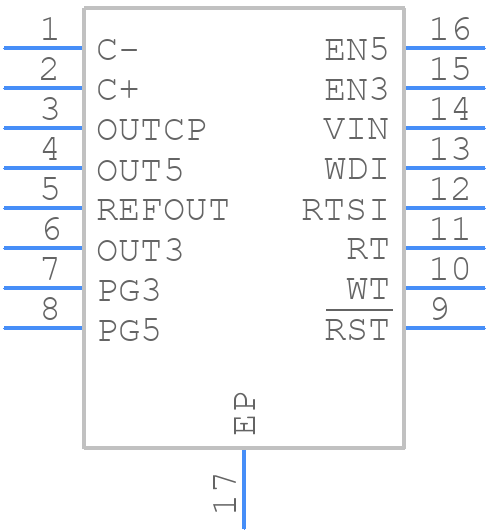

LTC3256IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3256IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE(MSOP)
click to zoom
3D Models
LTC3256IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE(MSOP)
click to zoom

LTC3256IMSE#PBF Details

  • Manufacturer Part Number:

    LTC3256IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT ALSO HAS 5V OUTPUT

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Output Voltage-Max:

    5.19 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5.05 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3256IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3256IMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the LTC3256IMSE operates within its thermal limits, make sure to provide adequate heat sinking, such as a thermal pad or a heat sink, and keep the ambient temperature within the recommended operating range. Also, avoid high power dissipation and high ambient temperatures.
  • The recommended input capacitor type for the LTC3256IMSE is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric, with a value of 10uF to 22uF. This helps to filter out noise and ripple on the input voltage.
  • To troubleshoot issues with the LTC3256IMSE, start by checking the input voltage, output voltage, and current draw. Verify that the input and output capacitors are properly sized and placed. Check for noise and ripple on the input voltage and output voltage. Also, ensure that the PCB layout is correct and that there are no signs of overheating.
  • Yes, the LTC3256IMSE is suitable for high-reliability and high-temperature applications. It has a wide operating temperature range of -40°C to 125°C and is designed to meet the requirements of high-reliability applications. However, it's essential to follow proper design and layout guidelines to ensure reliable operation.
