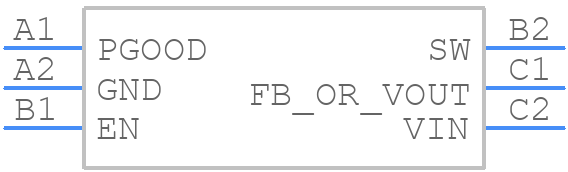

LTC3306AACBZ-1.2-R7 - Analog Devices

LTC3306AACBZ-1.2-R7 Details

• Manufacturer Part Number:

  LTC3306AACBZ-1.2-R7

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  CHIPS W/SOLDER BUMPS/WLCSP

• Package Description:

  WLCSP-6

• Pin Count:

  6

• Manufacturer Package Code:

  CHIPS W/SOLDER BUMPS/WLCSP

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2023-01-18

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.25 V

• Input Voltage-Nom:

  4 V

• JESD-30 Code:

  R-XBGA-B6

• Length:

  1.64 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.75 A

• Output Voltage-Max:

  3.65 V

• Output Voltage-Min:

  0.5 V

• Output Voltage-Nom:

  1.2 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA6,2X3,20

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  0.66 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2100 kHz

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  1.03 mm
