LTC3309BJV#TRMPBF - Analog Devices

Description: 5V, 6A, 10 MHz Synchronous Step-Down Silent Switcher in 2mm × 2mm LQFN , –0.3V to 6V ,5mA , –40?C to +125°C

Download LTC3309BJV#TRMPBF Model

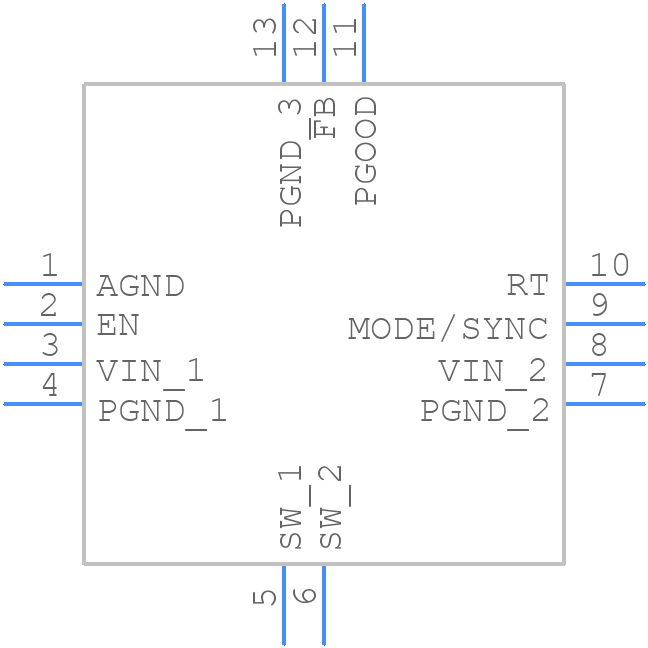

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3309BJV#TRMPBF - Analog Devices PCB footprint - Other - Other -  LQFN Package 12-Lead (2mm × 2mm × 0.74mm)_2026-1.27
click to zoom
3D Models
LTC3309BJV#TRMPBF - Analog Devices  - 3D model - Other -  LQFN Package 12-Lead (2mm × 2mm × 0.74mm)_2026-1.27
click to zoom

LTC3309BJV#TRMPBF Details

  • Manufacturer Part Number:

    LTC3309BJV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    SILENT SWITCHER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    10000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3309BJV#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3309BJV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF input capacitance and 22uF output capacitance is recommended. Also, avoid using capacitors with high ESL and ESR.
  • The LTC3309BJV is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance and reliability.
  • The LTC3309BJV is a surface-mount device and can be susceptible to vibration-induced failures. However, the device is designed to meet the requirements of various industrial and automotive standards. To ensure reliability in high-vibration environments, it's recommended to follow proper PCB mounting and assembly techniques, and to use a robust mechanical design.
  • To troubleshoot issues with the LTC3309BJV, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the input and output. Also, verify that the device is properly soldered and that there are no soldering defects or cold joints.
