LTC3315AHV#TRMPBF - Analog Devices

Description: Dual 5V, 2A Synchronous Step-Down DC/DCs in Tiny LQFN and WLCSP

Download LTC3315AHV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

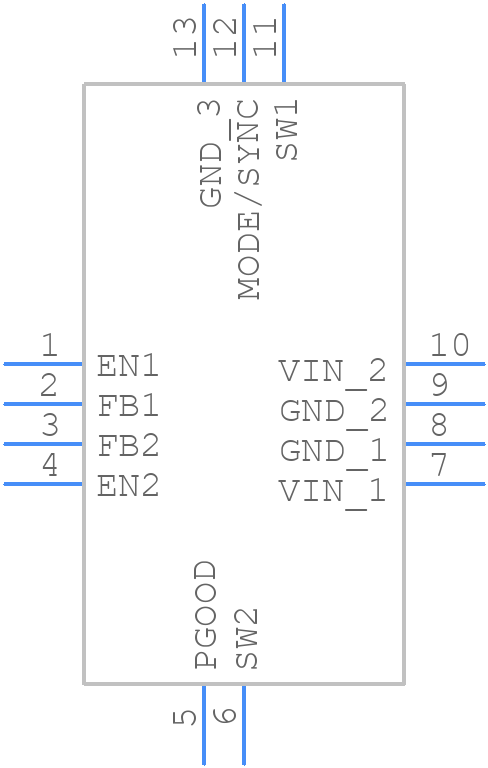

Symbol
LTC3315AHV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3315AHV#TRMPBF - Analog Devices PCB footprint - Other - Other - LTC3315AHV#TRMPBF-1
click to zoom
3D Models
LTC3315AHV#TRMPBF - Analog Devices - 3D model - Other - LTC3315AHV#TRMPBF-1
click to zoom

LTC3315AHV#TRMPBF Details

  • Manufacturer Part Number:

    LTC3315AHV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LTC3315AHV#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3315AHV involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the analog and digital grounds. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors.
  • The maximum ambient temperature range for the LTC3315AHV is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to operate it within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LTC3315AHV is suitable for high-reliability applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's recommended to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
  • To troubleshoot issues with the LTC3315AHV, start by checking the input and output voltages, as well as the current consumption. Verify that the device is properly powered and that the input and output capacitors are of high quality. Use an oscilloscope to check for noise and oscillations. If the issue persists, consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3315AHV#TRMPBF Overview

Use the download button to access the LTC3315AHV#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Switching Regulator or Controllers
