LTC3315AJV#TRMPBF - Analog Devices

Description: Dual 5V, 2A Synchronous Step-Down DC/DCs in Tiny LQFN and WLCSP

Download LTC3315AJV#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

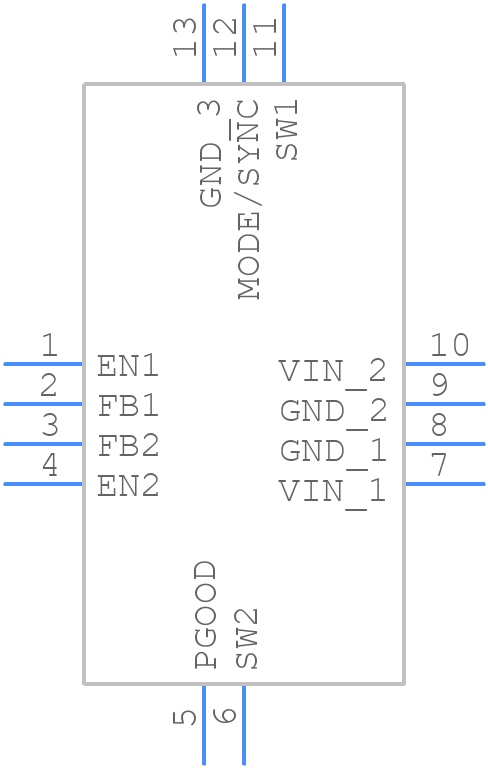

Symbol
LTC3315AJV#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3315AJV#TRMPBF - Analog Devices PCB footprint - Other - Other - LTC3315AJV#TRMPBF-1
click to zoom
3D Models
LTC3315AJV#TRMPBF - Analog Devices - 3D model - Other - LTC3315AJV#TRMPBF-1
click to zoom

LTC3315AJV#TRMPBF Details

  • Manufacturer Part Number:

    LTC3315AJV#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1530

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.83 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

LTC3315AJV#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3315AJV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the high-frequency switching nodes away from sensitive analog nodes.
  • To ensure the LTC3315AJV operates within its SOA, you should monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and that the input voltage and output current are within the recommended operating ranges. You can use thermal monitoring and overcurrent protection circuits to prevent damage to the device.
  • The recommended input capacitor type for the LTC3315AJV is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor helps to filter out high-frequency noise and ensures stable operation of the device.
  • To optimize the output voltage of the LTC3315AJV, you can adjust the feedback resistors (RFBT and RFB) to set the desired output voltage. You can also use the device's adjustable output voltage feature by connecting a resistive divider network between the output voltage and the FB pin.
  • The maximum ambient temperature range for the LTC3315AJV is -40°C to 125°C. However, the device's junction temperature should not exceed 150°C to ensure reliable operation and prevent damage.
