LTC3315BIV#TRMPBF footprint, schematic symbol and 3D model by Analog Devices

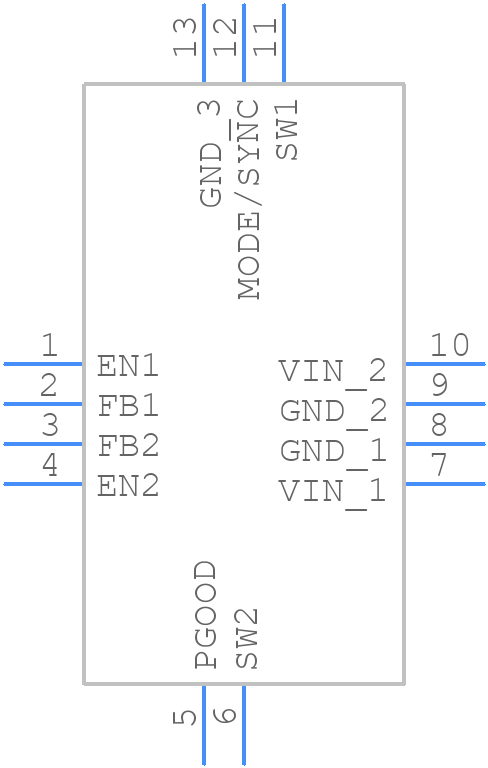

Symbol

click to zoom

PCB Footprints

LTC3315BIV#TRMPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFN 12-Lead (2mm × 2mm × 0.74mm)

click to zoom

3D Models

LTC3315BIV#TRMPBF - Analog Devices - 3D model - Quad Flat No-Lead - LQFN 12-Lead (2mm × 2mm × 0.74mm)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC3315BIV#TRMPBF
Part Number LTC3315BIV#TRMPBF
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LQFN 12-Lead (2mm × 2mm × 0.74mm)
Released Date Apr 6, 2021
Last Modified Date Nov 5, 2025 9:41 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC3315BIV#TRMPBF Details

Manufacturer Part Number:
LTC3315BIV#TRMPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LQFN-12
Pin Count:
12
Manufacturer Package Code:
05-08-1530
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2020-03-31
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.25 V
Input Voltage-Nom:
3.3 V
JESD-30 Code:
S-XQCC-N12
Length:
2 mm
Moisture Sensitivity Level:
3
Number of Functions:
2
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
0.5 V
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC12,.08SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.83 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
6450 kHz
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
2 mm

LTC3315BIV#TRMPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC3315BIV involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, check that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
The LTC3315BIV can operate in ambient temperatures up to 125°C, but the device's junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management, such as using a heat sink or a thermally conductive PCB, to prevent overheating.
Yes, the LTC3315BIV is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the LTC3315BIV, start by checking the input voltage, output voltage, and current. Verify that the device is operated within its recommended operating conditions and that the input and output capacitors are of high quality. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance or contact Analog Devices' technical support.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LTC3315BIV#TRMPBF Overview

Use the download button to access the LTC3315BIV#TRMPBF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
