LTC3330EUH#PBF - Analog Devices

Description: Power Supply Plus a DC to DC Converter 32-Pin QFN EP Tube

Download LTC3330EUH#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

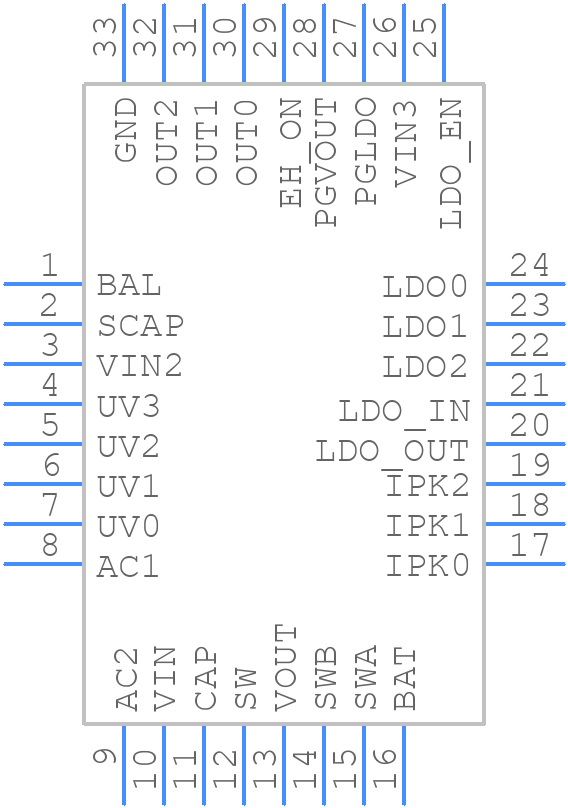

LTC3330EUH#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3330EUH#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)_2022
click to zoom
3D Models
LTC3330EUH#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UH Package 32-Lead Plastic QFN (5mm × 5mm)_2022
click to zoom

LTC3330EUH#PBF Details

  • Manufacturer Part Number:

    LTC3330EUH#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    05-08-1693

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO HAS 2.5V, 2.8V, 3V, 3.3V, 3.6V, 4.5V AND 5V OUTPUT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Output Voltage-Max:

    1.872 V

  • Output Voltage-Min:

    1.728 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.0025 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC3330EUH#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3330EUH involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using capacitors with high ESL (Equivalent Series Inductance) as they can cause oscillations.
  • The maximum ambient temperature range for the LTC3330EUH is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop. It's recommended to derate the output current and voltage at higher temperatures.
  • Yes, the LTC3330EUH is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device is securely attached to the board. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
  • To troubleshoot issues with the LTC3330EUH, start by checking the input voltage, output voltage, and current. Use an oscilloscope to check for oscillations or noise on the output. Verify that the component values and PCB layout match the recommended values and guidelines. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
