LTC3335IUDC#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3335IUDC#PBF - DC-DC Switching Buck, Boost Regulator, Adjustable, 1.8V-5.5Vin, 1.8V-5Vout, 50mAout, QFN-20

Download LTC3335IUDC#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

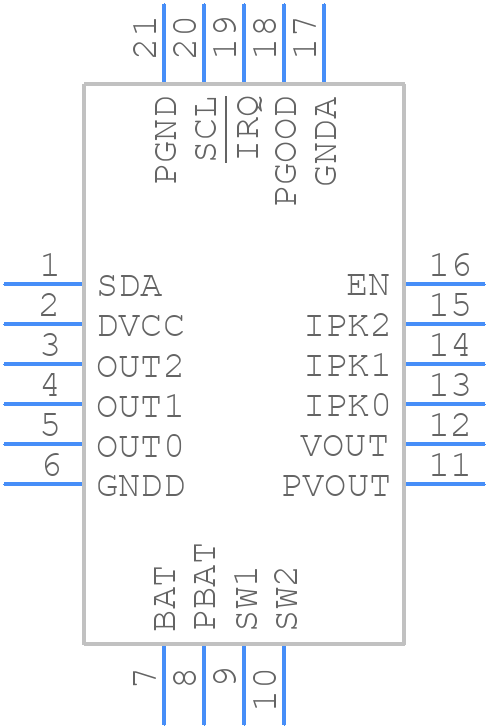

Symbol
LTC3335IUDC#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3335IUDC#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom
3D Models
LTC3335IUDC#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 20-Lead Plastic QFN (3mm × 4mm)
click to zoom

LTC3335IUDC#PBF Details

  • Manufacturer Part Number:

    LTC3335IUDC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 1.8 VOLT TO 5 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    1.863 V

  • Output Voltage-Min:

    1.737 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC3335IUDC#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive analog nodes.
  • The recommended inductor value is between 1.5uH to 3.3uH, and a shielded inductor with a low DCR (DC Resistance) is recommended. The inductor type should be a high-current, low-loss inductor with a high saturation current rating.
  • The output voltage can be adjusted by changing the resistor divider ratio of the FB (Feedback) pin. A higher resistor value will increase the output voltage, while a lower value will decrease it. However, it's recommended to use the recommended resistor values in the datasheet to ensure optimal performance.
  • The maximum output current that the LTC3335IUDC#PBF can deliver is 2A, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
