LTC3336ACBZ-2-R7 - Analog Devices

Description: 15V/250mA Nanopower Buck DC/DC with Programmable Peak Input Current

Download LTC3336ACBZ-2-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

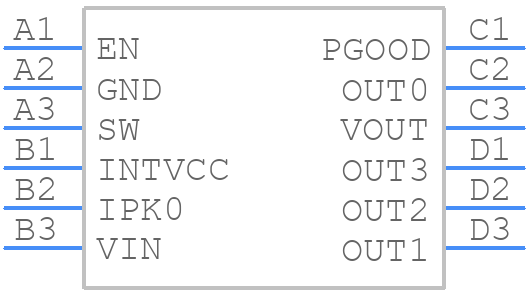

LTC3336ACBZ-2-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3336ACBZ-2-R7 - Analog Devices PCB footprint - BGA - BGA - (CB-12-15)
click to zoom
3D Models
LTC3336ACBZ-2-R7 - Analog Devices - 3D model - BGA - (CB-12-15)
click to zoom

LTC3336ACBZ-2-R7 Details

  • Manufacturer Part Number:

    LTC3336ACBZ-2-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    7.2 V

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    1.62 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.25 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    1.2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    0.56 mm

  • Supply Current-Max (Isup):

    0.065 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.18 mm

LTC3336ACBZ-2-R7 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3336ACBZ-2-R7 is 36V, but it's recommended to keep it below 34V to ensure reliable operation.
  • The LTC3336ACBZ-2-R7 operates within its specified temperature range of -40°C to 125°C when properly mounted on a PCB with adequate thermal management, such as a heat sink or thermal pad.
  • A recommended PCB layout for the LTC3336ACBZ-2-R7 includes keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and loops to reduce noise and EMI.
  • Yes, the LTC3336ACBZ-2-R7 is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the LTC3336ACBZ-2-R7, start by verifying the input voltage, output voltage, and current, and checking for proper PCB layout and component selection. Use an oscilloscope to monitor the device's behavior and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3336ACBZ-2-R7 Overview

Use the download button to access the LTC3336ACBZ-2-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC33, or try a keyword search, such as Switching Regulator or Controllers
