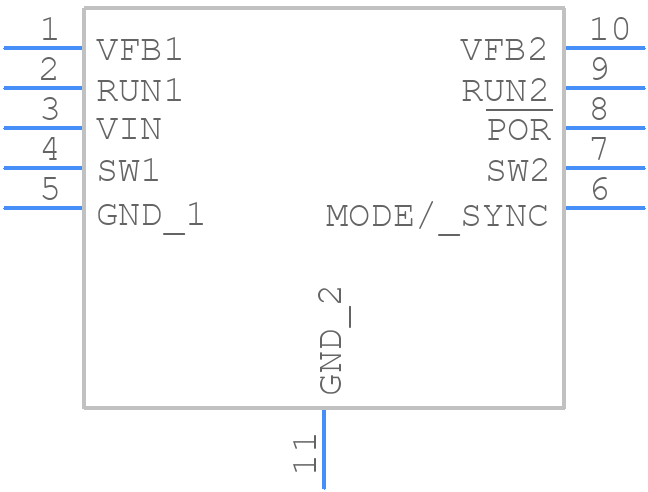

LTC3407EMSE-2#PBF - Analog Devices

LTC3407EMSE-2#PBF Details

• Manufacturer Part Number:

  LTC3407EMSE-2#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LEAD FREE, PLASTIC, MSOP-10

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1664

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.6V TO 5V

• Analog IC - Other Type:

  DUAL SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  BURST MODE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.6 A

• Output Voltage-Max:

  5 V

• Output Voltage-Min:

  0.6 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  0.95 mA

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2700 kHz

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
