LTC3412EUF#PBF - Analog Devices

Description: Switching Voltage Regulators 4 MHz, 2.5A Synch Step-dwn Reg

Download LTC3412EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

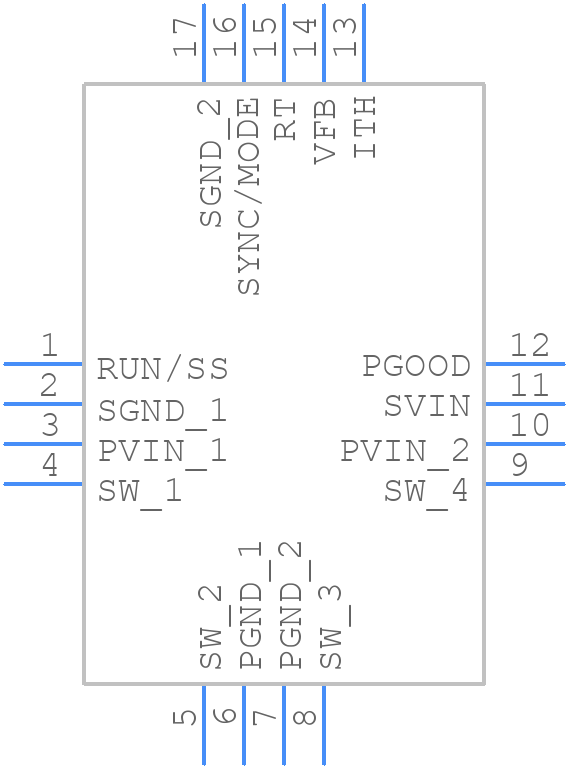

LTC3412EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3412EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom
3D Models
LTC3412EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom

LTC3412EUF#PBF Details

  • Manufacturer Part Number:

    LTC3412EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, LEAD FREE, PLASTIC, MO-220WGGC, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    6.5 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LTC3412EUF#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the internal components.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value. A minimum of 10uF ceramic capacitor is recommended. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limits.
  • The maximum output current that can be drawn from the LTC3412EUF is 1.5A. However, it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
  • The soft-start feature of the LTC3412EUF can be configured by connecting a capacitor from the SS pin to GND. The value of the capacitor determines the soft-start time. A larger capacitor value results in a slower soft-start time. The recommended soft-start time is between 1ms to 10ms.
  • The PG (Power Good) pin is an open-drain output that indicates when the output voltage is within the specified regulation range. It can be used to monitor the output voltage and to generate a reset signal for the downstream circuitry. The PG pin can be connected to a pull-up resistor and a logic input to generate a digital signal.
