LTC3417EFE#PBF - Analog Devices

Description: Dual Synchronous 1.4A/800mA 4MHz Step-Down DC/DC Regulator

Download LTC3417EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

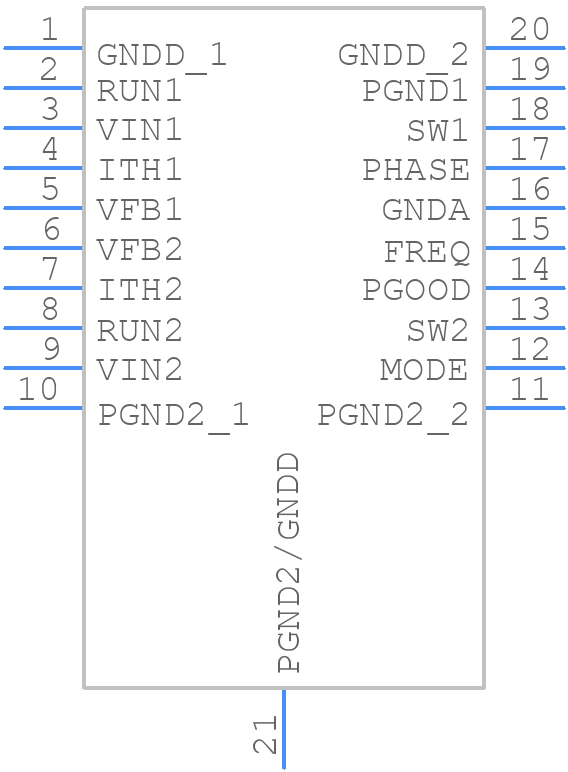

LTC3417EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3417EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3417EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3417EFE#PBF Details

  • Manufacturer Part Number:

    LTC3417EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1663 (CA)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3417EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW pin) away from sensitive nodes.
  • The recommended operating frequency range for the LTC3417EFE is between 200 kHz to 2 MHz. Operating outside this range may affect the converter's efficiency and stability.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 2.2 μH). Then, adjust the value based on the specific requirements of your application, such as efficiency, ripple current, and size constraints.
  • The maximum output current that the LTC3417EFE can deliver is 1.5A. However, the actual output current may be limited by the input voltage, output voltage, and inductor value. It's recommended to check the datasheet and perform thermal calculations to ensure the device can handle the required output current.
