LTC3490EDD#PBF - Analog Devices

Description: Linear Technology LTC3490EDD#PBF, LED Display Driver 1-Segments, 1 → 3.2 V, 8-Pin DFN

Download LTC3490EDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

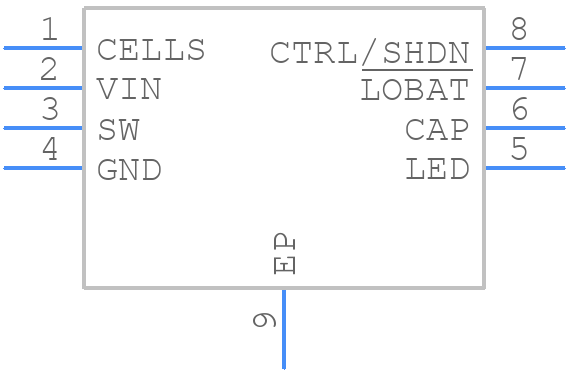

LTC3490EDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3490EDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package-ren1
click to zoom
3D Models
LTC3490EDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package-ren1
click to zoom

LTC3490EDD#PBF Details

  • Manufacturer Part Number:

    LTC3490EDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.2 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3490EDD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and to prevent damage to the device.
  • To ensure the stability of the output voltage, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum output current that the LTC3490 can deliver is 2A, but it's recommended to keep it below 1.5A for optimal performance and to prevent overheating.
  • To configure the device for a specific output voltage, use the FB pin and a resistive divider network to set the desired output voltage. The FB pin is connected to the output voltage through a resistive divider, and the output voltage is set by adjusting the ratio of the resistors.
  • The EN pin is the enable pin, which allows the device to be turned on or off. To use it, connect the EN pin to a logic-level signal (0V or 5V) to enable or disable the device. When the EN pin is low (0V), the device is disabled, and when it's high (5V), the device is enabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3490EDD#PBF Overview

Use the download button to access the LTC3490EDD#PBF schematic symbol, PCB footprint, and 3D model.
