LTC3528BEDDB-2#TRMPBF - Analog Devices

Description: Delivers 3.3V at 200mA from a Single Alkaline/ NiMH Cell or 3.3V at 400mA from Two Cells n VIN Start-Up Voltage: 700mV n 0.50V to 5.5V Input Range n 1.6V to 5.25V VOUT Range n Up to 94% Efficiency n Output Disconnect n 2MHz Fixed Frequency Operation n VIN > VOUT Operation n Integrated Soft-Start n Current Mode Control with Internal Compensation n Low Noise PWM Operation n Internal Synchronous Rectifier n Logic Controlled Shutdown: <1µA n Anti-Ringing Control n Low Profile (2mm × 3mm × 0.75mm)

Download LTC3528BEDDB-2#TRMPBF Model

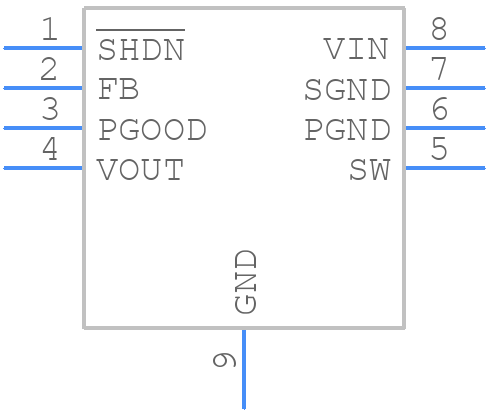

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3528BEDDB-2#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1702 Rev B)
click to zoom
3D Models
LTC3528BEDDB-2#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1702 Rev B)
click to zoom

LTC3528BEDDB-2#TRMPBF Details

  • Manufacturer Part Number:

    LTC3528BEDDB-2#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.6V TO 5.25V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC3528BEDDB-2#TRMPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the VIN pin is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To optimize the inductor selection, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter, and a DC resistance that minimizes power loss.
  • For optimal performance, keep the power components (inductor, capacitors, and IC) close together, and use a solid ground plane to reduce noise and EMI. Keep the feedback network (FB, COMP, and VOUT) away from the power components and use a separate analog ground plane.
  • The output voltage can be adjusted by changing the resistor divider ratio (R1 and R2) connected to the FB pin. Use the formula: VOUT = 0.8V x (1 + R2/R1) to calculate the desired output voltage.
  • The EN (enable) pin is used to turn the converter on and off. Connect EN to VIN to enable the converter, or connect it to GND to disable it. You can also use an external signal to control the EN pin for dynamic power management.
