LTC3528BEDDB-2#TRPBF - Analog Devices

Description: 1A, 2MHz Synchronous Step-Up DC/DC Converter in 2mm × 3mm DFN

Download LTC3528BEDDB-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

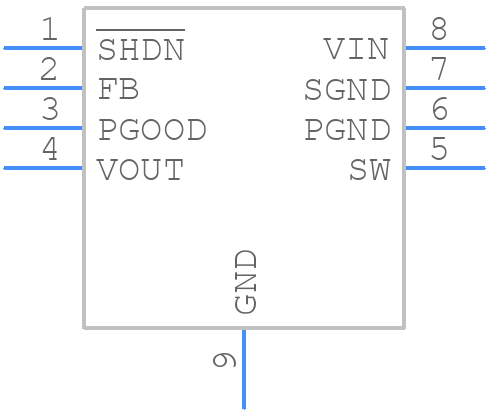

Symbol
LTC3528BEDDB-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3528BEDDB-2#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1702 Rev B)
click to zoom
3D Models
LTC3528BEDDB-2#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 8-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1702 Rev B)
click to zoom

LTC3528BEDDB-2#TRPBF Details

  • Manufacturer Part Number:

    LTC3528BEDDB-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 2 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WECD-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1702

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1.6V TO 5.25V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    1.2 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC3528BEDDB-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3528 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog signals away from the switching node.
  • When choosing an inductor for the LTC3528, consider the maximum current rating, inductance value, and core material. A higher inductance value can reduce the ripple current, but may also increase the size and cost of the inductor. The core material should be chosen based on the operating frequency and the desired level of core loss. It's also important to ensure that the inductor is rated for the maximum operating temperature of the application.
  • The LTC3528 can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, the input and output capacitors should be chosen to ensure that the device operates within the recommended frequency range. It's also important to ensure that the feedback loop is properly compensated to prevent oscillation.
  • Yes, the LTC3528 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured using a robust process that ensures high reliability. However, it's essential to follow the recommended design and testing guidelines to ensure that the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3528BEDDB-2#TRPBF Overview

Use the download button to access the LTC3528BEDDB-2#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC35, or try a keyword search, such as Switching Regulator or Controllers
