LTC3530EMS#PBF - Analog Devices

Description: Linear Technology LTC3530EMS#PBF, Boost/Buck Converter Boost, Buck 1A, Adjustable, 1.8 → 5.25 V, 1.3 MHz, 10-Pin

Download LTC3530EMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

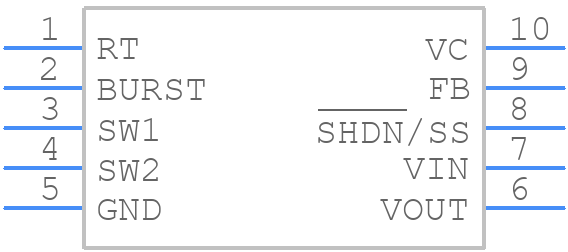

Symbol
LTC3530EMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3530EMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom
3D Models
LTC3530EMS#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom

LTC3530EMS#PBF Details

  • Manufacturer Part Number:

    LTC3530EMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    3.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1300 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3530EMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3530EMS#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces connecting the IC to the capacitors and resistors. Additionally, it's recommended to use a star-ground configuration and to avoid routing high-frequency signals near the IC.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor.
  • The maximum ambient temperature range for the LTC3530EMS#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to derate the output current and voltage accordingly.
  • Yes, the LTC3530EMS#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and is qualified to the AEC-Q100 standard for automotive applications. However, it's recommended to consult with Analog Devices' application engineers to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LTC3530EMS#PBF, start by checking the input voltage, output voltage, and output current. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
