Part Image

LTC3534EGNPBF - Analog Devices

Description: n Regulated Output with Input Voltages Above, Below or Equal to the Output n 2.4V to 7V VIN and 1.8V to 7V VOUT Ranges n 5V VOUT at 500mA from 4 AA Cells n Single Inductor n Synchronous Rectification: Up to 94% Efficiency n Burst Mode® Operation with 25µA IQ n Output Disconnect in Shutdown n 1MHz Switching Frequency n <1µA Shutdown Current n Small Thermally Enhanced 16-Lead (5mm × 3mm × 0.75mm) DFN and 16-Lead GN Packages

Download LTC3534EGNPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

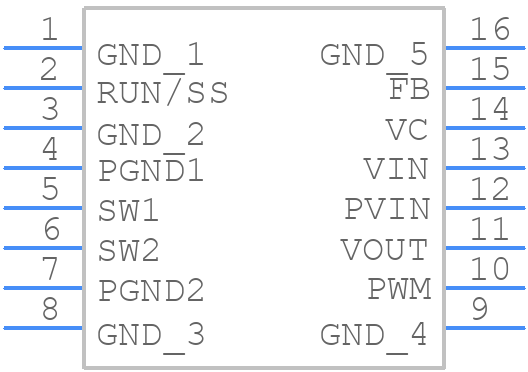

LTC3534EGNPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3534EGNPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom
3D Models
LTC3534EGNPBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)
click to zoom

LTC3534EGNPBF Details

  • Manufacturer Part Number:

    LTC3534EGNPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3534EGNPBF Overview

Use the download button to access the LTC3534EGNPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC35, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
