LTC3561AEDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3561AEDD#PBF - VOLTAGE REG, BUCK, 1A, 4MHZ, DFN-8

Download LTC3561AEDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

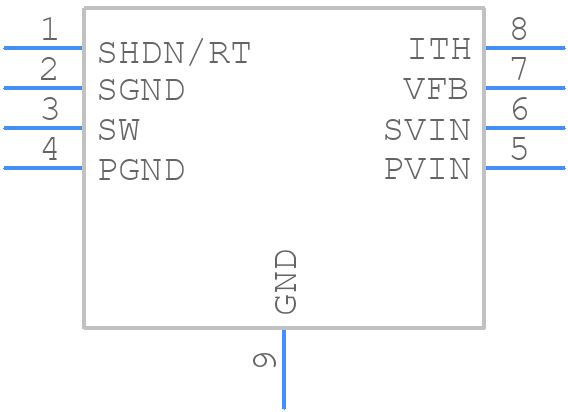

Symbol
LTC3561AEDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3561AEDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LTC3561AEDD#PBF
click to zoom
3D Models
LTC3561AEDD#PBF - Analog Devices - 3D model - Small Outline No-lead - LTC3561AEDD#PBF
click to zoom

LTC3561AEDD#PBF Details

  • Manufacturer Part Number:

    LTC3561AEDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3561AEDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3561AEDD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3561AEDD in a high-temperature environment, ensure good thermal management by providing adequate heat sinking, using a thermally conductive PCB material, and keeping the IC away from heat sources. Also, consider using a thermistor to monitor the temperature and adjust the output voltage accordingly.
  • The maximum input voltage that the LTC3561AEDD can handle is 15V. Exceeding this voltage may damage the IC. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
  • To troubleshoot issues with the LTC3561AEDD, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the LTC3561AEDD can be used in a battery-powered device. However, ensure that the input voltage remains within the specified range, and consider using a low-dropout regulator or a battery monitor to optimize power consumption and extend battery life.
