LTC3568EDD#TRPBF - Analog Devices

Description: IC REG BUCK ADJ 1.8A SYNC 10DFN

Download LTC3568EDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

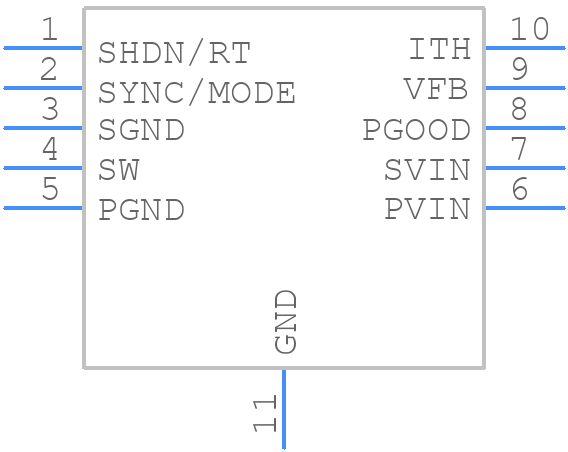

LTC3568EDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3568EDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC3568EDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD 10-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC3568EDD#TRPBF Details

  • Manufacturer Part Number:

    LTC3568EDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3568EDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3568EDD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The compensation network for the LTC3568EDD can be optimized by following the guidelines in the datasheet and using the recommended component values. Additionally, the network can be fine-tuned by adjusting the values of the resistors and capacitors to achieve the desired loop gain and phase margin.
  • The maximum input voltage that the LTC3568EDD can handle is 15V. Exceeding this voltage can damage the IC. It's recommended to use input voltage limiting circuits or voltage regulators to ensure that the input voltage remains within the specified range.
  • To ensure the stability of the LTC3568EDD, follow the recommended layout guidelines, use the recommended component values, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the IC should be operated within the specified temperature range and the input voltage should be within the recommended range.
  • The LTC3568EDD is rated for operation up to 125°C. However, the IC's performance and reliability may degrade at high temperatures. It's recommended to use the IC within the specified temperature range and to ensure proper thermal management in high-temperature environments.
