LTC3600EDD#PBF - Analog Devices

Description: Buck Switching Regulator IC Positive Programmable 0V 1 Output 1.5A 12-WFDFN Exposed Pad

Download LTC3600EDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

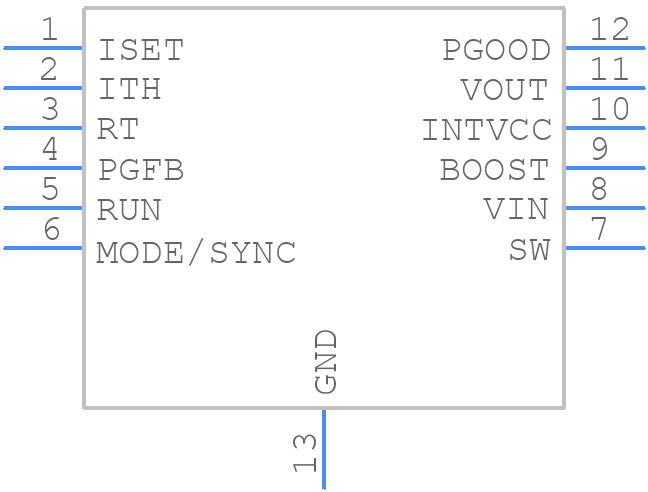

Symbol
LTC3600EDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3600EDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom
3D Models
LTC3600EDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 12-Lead Plastic DFN (3mm × 3mm) (Reference LTC DWG # 05-08-1725 Rev A)
click to zoom

LTC3600EDD#PBF Details

  • Manufacturer Part Number:

    LTC3600EDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    14.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1.06 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3600EDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3600EDD#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the LTC3600EDD#PBF operates within its recommended operating conditions, make sure to keep the input voltage within the specified range (2.5V to 5.5V), keep the output current below the maximum rating (3A), and maintain a proper thermal management system to keep the junction temperature below 125°C.
  • When selecting input and output capacitors for the LTC3600EDD#PBF, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a capacitance value of 10uF to 22uF are recommended for the input capacitor, while a low ESR and a capacitance value of 22uF to 47uF are recommended for the output capacitor.
  • To troubleshoot issues with the LTC3600EDD#PBF, start by checking the input voltage and current, output voltage and current, and the device's thermal performance. Use an oscilloscope to check for any oscillations or noise on the output voltage. Also, verify that the PCB layout and component selection meet the recommended guidelines.
  • The LTC3600EDD#PBF is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and careful consideration of the device's operating conditions. Consult with Analog Devices Inc. for specific guidance on using the device in such applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3600EDD#PBF Overview

Use the download button to access the LTC3600EDD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
