LTC3600EMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3600EMSE#PBF - DC-DC Switching Buck Step Down Regulator, Adjustable, 4V-15Vin, 0V-14.5Vout, 1.5Aout, MSOP-12

Download LTC3600EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

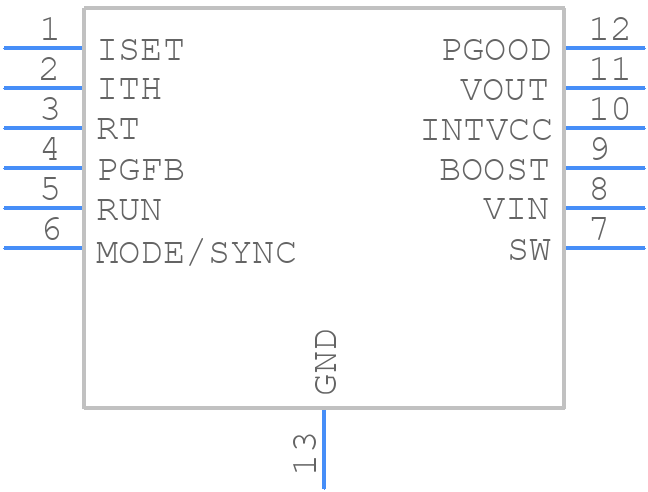

LTC3600EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3600EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT3090EMSE#PBF
click to zoom
3D Models
LTC3600EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - LT3090EMSE#PBF
click to zoom

LTC3600EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3600EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    14.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1.06 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3600EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3600EMSE#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the LTC3600EMSE#PBF operates within its recommended operating conditions, make sure to operate it within the specified input voltage range (2.5V to 5.5V), keep the junction temperature below 125°C, and avoid exceeding the maximum output current (3A).
  • When selecting input and output capacitors for the LTC3600EMSE#PBF, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. A low ESR and a capacitance value of 10uF to 22uF are recommended for the input capacitor, while a low ESR and a capacitance value of 22uF to 47uF are recommended for the output capacitor.
  • To troubleshoot issues with the LTC3600EMSE#PBF, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output voltage.
  • The LTC3600EMSE#PBF is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper derating and design considerations. Consult with Analog Devices Inc. for specific guidance on using the LTC3600EMSE#PBF in such applications.
