LTC3601EMSE#PBF - Analog Devices

Description: Linear Technology LTC3601EMSE#PBF, Step Down DC-DC Switching Regulator, 1.5A, Adjustable, 0.6 → 5 V, 16-Pin MSOP

Download LTC3601EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

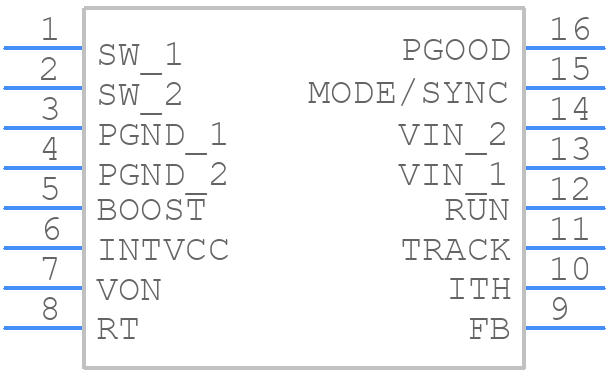

LTC3601EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3601EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom
3D Models
LTC3601EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom

LTC3601EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3601EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    BURST MODE

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4600 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3601EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3601EMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To optimize the performance of the LTC3601EMSE, ensure that the input voltage is within the recommended range, use a high-quality input capacitor, and minimize the output capacitor ESR. Additionally, optimize the PCB layout, and ensure that the device is properly decoupled.
  • The maximum ambient temperature for the LTC3601EMSE is 85°C. However, the device can operate at higher temperatures with derating. Consult the datasheet for more information on temperature derating.
  • Yes, the LTC3601EMSE is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3601EMSE, start by checking the input voltage, output voltage, and current. Verify that the device is properly decoupled, and the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operating within its recommended specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3601EMSE#PBF Overview

Use the download button to access the LTC3601EMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
