LTC3607EUD#PBF - Analog Devices

Description: IC REG BUCK ADJ 600MA DL 16QFN

Download LTC3607EUD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

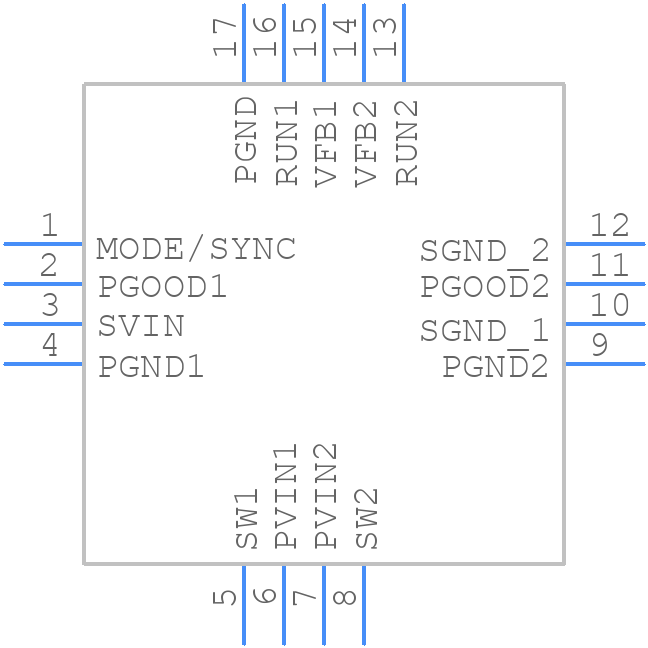

LTC3607EUD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3607EUD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD(QFN)16
click to zoom
3D Models
LTC3607EUD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD(QFN)16
click to zoom

LTC3607EUD#PBF Details

  • Manufacturer Part Number:

    LTC3607EUD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-220WEED-2, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1691

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 15V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.25 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3607EUD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3607EUD#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces connecting the input and output pins. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the LTC3607EUD#PBF operates within its SOA, monitor the input voltage, output current, and ambient temperature. Ensure the device is properly heatsinked, and the thermal resistance (θJA) is minimized. Also, follow the recommended layout and thermal management guidelines in the datasheet.
  • When selecting input and output capacitors for the LTC3607EUD#PBF, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. Choose capacitors with low ESR and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
  • To troubleshoot issues with the LTC3607EUD#PBF, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and thermal management to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Operating the LTC3607EUD#PBF at high ambient temperatures can reduce its reliability and lifespan. The device's maximum junction temperature (TJ) is 150°C. Ensure the device is properly heatsinked, and the thermal resistance (θJA) is minimized. Derate the output current and input voltage according to the datasheet guidelines for high-temperature operation.
