LTC3621IMS8E-5#PBF - Analog Devices

Description: Conv DC-DC 2.7V to 17V Synchronous Step Down Single-Out 0.6V to 17V 1A Automotive 8-Pin MSOP EP Tube

Download LTC3621IMS8E-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

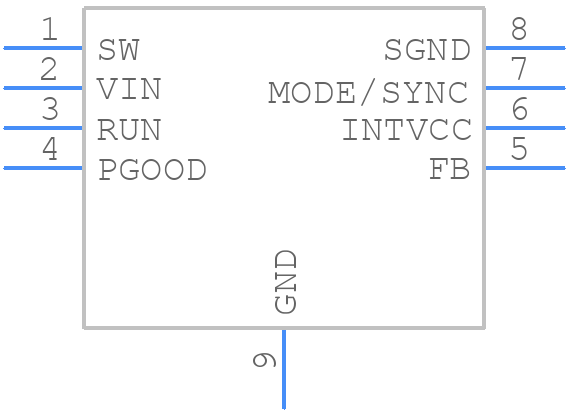

LTC3621IMS8E-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3621IMS8E-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC3621IMS8E-5#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC3621IMS8E-5#PBF Details

  • Manufacturer Part Number:

    LTC3621IMS8E-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE SKIP MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.075 V

  • Output Voltage-Min:

    4.925 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1160 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3621IMS8E-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3621IMS8E-5#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce inductance. Additionally, it's recommended to keep the switching node (SW pin) away from sensitive analog nodes and to use a shielded inductor to reduce EMI.
  • When selecting an inductor for the LTC3621IMS8E-5#PBF, consider the maximum current rating, inductance value, and DC resistance. A good starting point is to choose an inductor with a current rating of at least 1.5 times the maximum output current, an inductance value between 1-10uH, and a DC resistance of less than 100mΩ. It's also important to consider the inductor's physical size, core material, and shielding to minimize EMI.
  • The maximum ambient temperature range for the LTC3621IMS8E-5#PBF is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • To ensure the LTC3621IMS8E-5#PBF is stable and doesn't oscillate, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor with a low ESR, and add a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins to filter out high-frequency noise. Additionally, ensure that the input voltage is within the recommended range and that the device is not operated in a high-impedance environment.
  • Yes, the LTC3621IMS8E-5#PBF is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and is qualified to the AEC-Q100 standard for automotive applications. However, it's recommended to consult with Analog Devices Inc. for specific requirements and to ensure that the device meets the necessary qualifications and standards for the target application.
