LTC3622EMSE-2#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3622EMSE-2#PBF - DC/DC CONV, SYNC BUCK, 2.25MHZ, MSOP-16

Download LTC3622EMSE-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

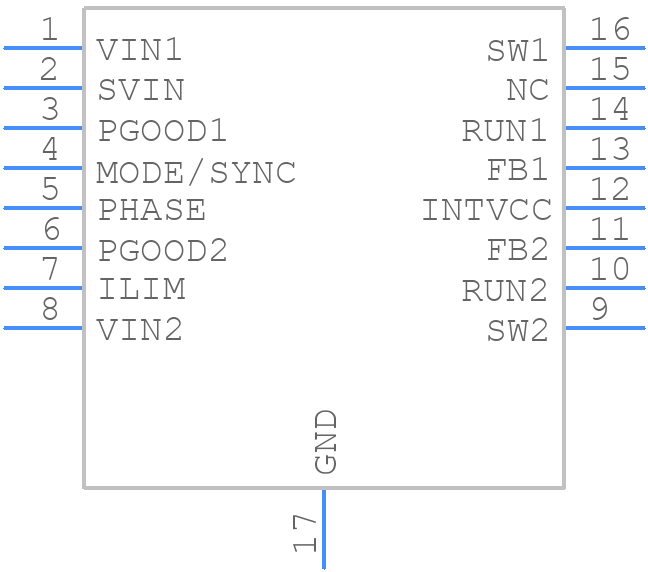

Symbol
LTC3622EMSE-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3622EMSE-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom
3D Models
LTC3622EMSE-2#PBF - Analog Devices - 3D model - Small Outline Packages - 16-Lead Plastic MSOP
click to zoom

LTC3622EMSE-2#PBF Details

  • Manufacturer Part Number:

    LTC3622EMSE-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    VOLTAGE-MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2250 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3622EMSE-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3622EMSE-2#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and EMI.
  • To ensure the LTC3622EMSE-2#PBF operates within its specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified ambient temperature range of -40°C to 125°C.
  • The recommended input capacitor type for the LTC3622EMSE-2#PBF is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This type of capacitor helps to filter out high-frequency noise and ensures stable operation of the device.
  • To troubleshoot issues with the LTC3622EMSE-2#PBF, start by checking the input voltage, output voltage, and current levels using an oscilloscope or multimeter. Ensure that the input and output capacitors are properly connected and meet the recommended specifications. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for further guidance or contact Analog Devices' technical support.
