LTC3622IDE#PBF - Analog Devices

Description: Dual Step-Down Outputs: 1A Per Channel n Wide VIN Range: 2.7V to 17V n Wide VOUT Range: 0.6V to VIN n Up to 95% Efficiency n No-Load IQ = 5µA with Both Channels Enabled; IQ < 4µA with Only One Channel Enabled n High Efficiency, Low Dropout Operation (100% Duty Cycle) n Constant Frequency (1MHz/2.25MHz) with External Frequency Synchronization n ±1% Output Voltage Accuracy n Current Mode Operation for Excellent Line and Load Transient Response n Phase Shift Programmable with External Clock n Sel

Download LTC3622IDE#PBF Model
Schematic

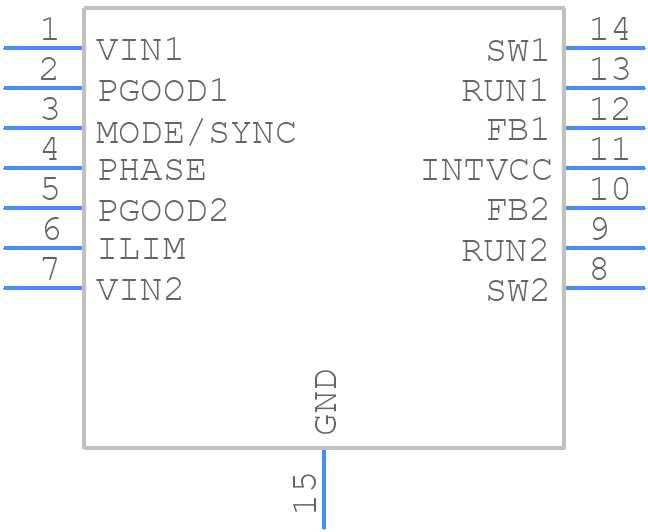

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3622IDE#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm) (Reference LTC DWG # 05-08-1708)
click to zoom
3D Models
LTC3622IDE#PBF - Analog Devices  - 3D model - Small Outline No-lead - DE Package 14-Lead Plastic DFN (4mm × 3mm) (Reference LTC DWG # 05-08-1708)
click to zoom

LTC3622IDE#PBF Details

  • Manufacturer Part Number:

    LTC3622IDE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1708

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    VOLTAGE-MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2250 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3622IDE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3622IDE is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To minimize EMI and noise, it's recommended to follow a star-ground configuration, keep the input and output capacitors close to the IC, and use a solid ground plane. Additionally, use a shielded inductor and keep the switching node (SW) away from sensitive analog nodes.
  • The recommended output capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor (X5R or X7R dielectric) to minimize output voltage ripple and ensure stability.
  • The output voltage of the LTC3622IDE can be adjusted by using a resistive divider network between the output voltage and the FB pin. The recommended resistors are 1% tolerance, and the ratio of the resistors determines the output voltage.
  • The maximum ambient temperature range for the LTC3622IDE is -40°C to 125°C, but the device can operate up to 150°C with derating. It's recommended to keep the junction temperature below 125°C for optimal performance and reliability.
