LTC3624HMSE#PBF - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 2A 12-TSSOP (0.118", 3.00mm Width) Exposed Pad

Download LTC3624HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

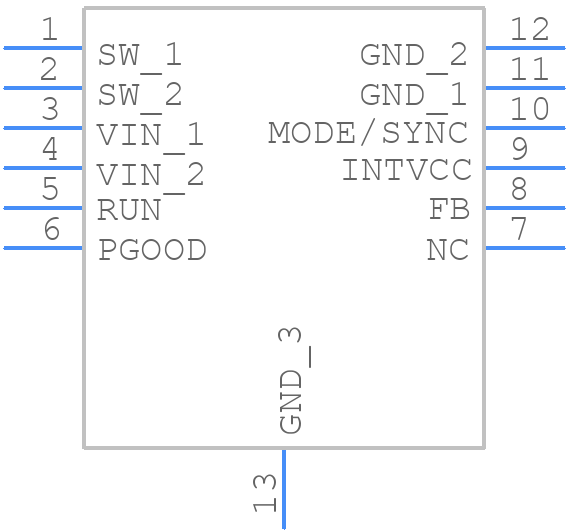

LTC3624HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3624HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC3624HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC3624HMSE#PBF Details

  • Manufacturer Part Number:

    LTC3624HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.6 V TO 17 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    17 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC3624HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3624HMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 22uF to 47uF. The capacitor selection also depends on the input voltage, output voltage, and the desired output ripple.
  • The maximum ambient temperature for the LTC3624HMSE is 85°C, but it can be derated to 70°C for high-reliability applications. The device can operate up to 125°C junction temperature.
  • To ensure stability, the input and output capacitors should be selected carefully, and the PCB layout should be designed to minimize the parasitic inductance and resistance. Additionally, the device should be operated within the recommended input and output voltage ranges, and the output should not be overloaded.
  • Yes, the LTC3624HMSE is designed to operate in high-vibration environments. However, the PCB should be designed to withstand the vibration, and the components should be securely attached to the PCB. Additionally, the device should be operated within the recommended temperature range.
