Part Image

LTC3630HDHC#PBF - Analog Devices

Description: High Efficiency, 65V 500mA Synchronous Step-Down Converter

Download LTC3630HDHC#PBF Model

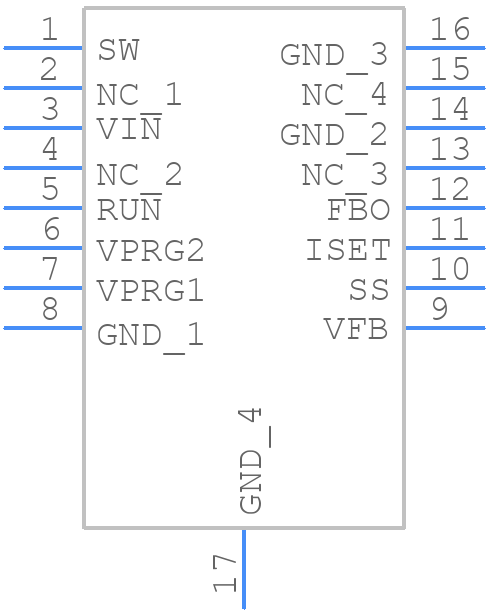

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC3630HDHC#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm) (Reference LTC DWG # 05-08-1706 Rev Ø)
click to zoom
3D Models
LTC3630HDHC#PBF - Analog Devices  - 3D model - Small Outline No-lead - DHC Package 16-Lead Plastic DFN (5mm × 3mm) (Reference LTC DWG # 05-08-1706 Rev Ø)
click to zoom

LTC3630HDHC#PBF Details

  • Manufacturer Part Number:

    LTC3630HDHC#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1706

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    3.3 AND 5 VOLT FIXED OUTPUT VOLTAGE ALSO AVAILABLE, ADJUSTABLE OUTPUT MODE FROM 0.8 TO 65 VOLT

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    65 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Output Voltage-Max:

    65 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.27 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3630HDHC#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3630 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • The choice of input and output capacitors for the LTC3630 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LTC3630 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the IC. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
  • The power dissipation of the LTC3630 can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The quiescent current can be found in the datasheet.
  • The recommended input voltage range for the LTC3630 is 2.7V to 5.5V, but the IC can operate from 2.5V to 5.5V. However, the output voltage and current may be affected at lower input voltages.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3630HDHC#PBF Overview

Use the download button to access the LTC3630HDHC#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC3630HDHC#PBF

Showing 0 results

LTC3630HDHC#PBF Alternates

Showing results

Image Part Number Model
Part Image LTC3630EDHC#PBF Analog Devices Inc

Switching Regulator, Voltage-mode, 1.4A, CMOS, PDSO16

Part Image LTC3630IDHC#PBF Linear Technology

Switching Regulator, Voltage-mode, 1.4A, CMOS, PDSO16

Part Image LTC3630MPDHC#TRPBF Linear Technology

Switching Regulator, Voltage-mode, 1.4A, CMOS, PDSO16

Part Image LTC3630EDHC#TRPBF Linear Technology

Switching Regulator, Voltage-mode, 1.4A, CMOS, PDSO16

Part Image LTC3630IDHC#TRPBF Linear Technology

Switching Regulator, Voltage-mode, 1.4A, CMOS, PDSO16

For a full list of alternate parts for LTC3630HDHC#PBF, check out Findchips.com
