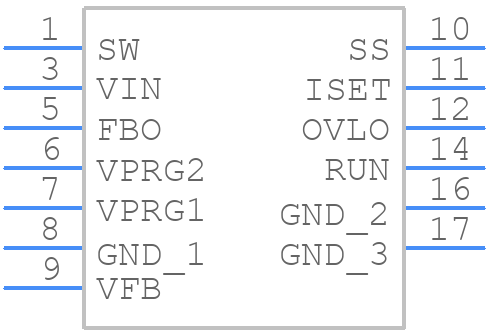

LTC3637MPMSE#PBF - Analog Devices

LTC3637MPMSE#PBF Details

• Manufacturer Part Number:

  LTC3637MPMSE#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MSOP-16/12

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1871

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO HAS 3.3V, 5V FIXED OUTPUTS AND ADJUSTABLE OUTPUT FROM 0.8V TO 76V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  BURST MODE

• Input Voltage-Max:

  76 V

• Input Voltage-Min:

  4 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G12

• JESD-609 Code:

  e3

• Length:

  4.039 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  1 A

• Output Voltage-Max:

  76 V

• Output Voltage-Min:

  0.8 V

• Output Voltage-Nom:

  1.8 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP12/16,.19,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  250 kHz

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
