LTC3642EMS8E-5PBF - Analog Devices

Description: Wide Input Voltage Range: 4.5V to 45V n Tolerant of 60V Input Transients n Internal High Side and Low Side Power Switches n No Compensation Required n 50mA Output Current n Low Dropout Operation: 100% Duty Cycle n Low Quiescent Current: 12µA n 0.8V Feedback Voltage Reference n Adjustable Peak Current Limit n Internal and External Soft-Start n Precise RUN Pin Threshold with Adjustable Hysteresis n 3.3V, 5V and Adjustable Output Versions n Only Three External Components Required for Fixed Output

Download LTC3642EMS8E-5PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

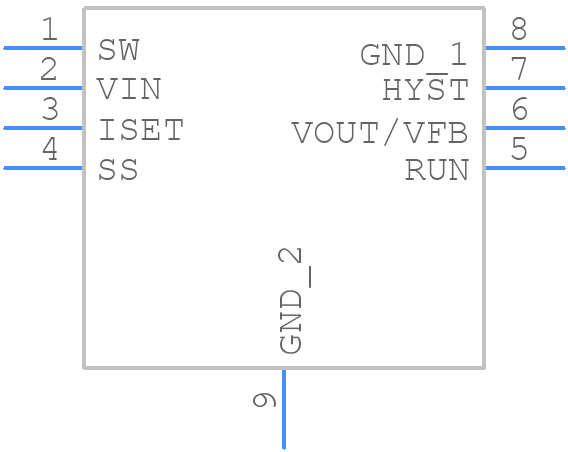

LTC3642EMS8E-5PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3642EMS8E-5PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC3642EMS8E-5PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC3642EMS8E-5PBF Details

  • Manufacturer Part Number:

    LTC3642EMS8E-5PBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3642EMS8E-5PBF Overview

Use the download button to access the LTC3642EMS8E-5PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers
