LTC3643IUDD#WTRPBF - Analog Devices

Description: Bidirectional Synchronous Boost Capacitor Charger/Buck Regulator for System Backup n Wide Input Voltage Range: 3V to 17V n Up to 40V Capacitor Voltage Storage for High Energy Backup n 2A Maximum CAP Charge Current n Integrated Power N-Channel MOSFETs (150mΩ Top and 75mΩ Bottom) n Integrated Power N-Channel MOSFET for Output/CAP Disconnect (50mΩ) n Input Current Limit During Charging n Fast 1MHz Switching Frequency n ±1% Reference Accuracy for System Voltage Regulation n Indicator Outputs for Ch

Download LTC3643IUDD#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

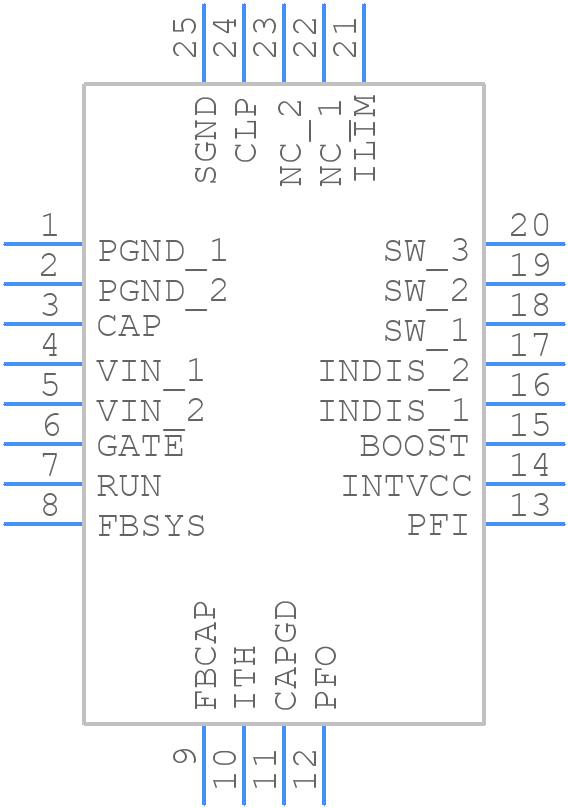

Symbol
LTC3643IUDD#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3643IUDD#WTRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom
3D Models
LTC3643IUDD#WTRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UDDM Package 24-Lead Plastic Side Solderable QFN (3mm × 5mm) (Reference LTC DWG # 05-08-1795 Rev Ø)
click to zoom

LTC3643IUDD#WTRPBF Details

  • Manufacturer Part Number:

    LTC3643IUDD#WTRPBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3643IUDD#WTRPBF Overview

Use the download button to access the LTC3643IUDD#WTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC36, or try a keyword search, such as Switching Regulator or Controllers
