LTC3704EMS#PBF - Analog Devices

Description: Linear Technology LTC3704EMS#PBF, DC-DC Controller, 50mA, 36 V Positive to Negative, 350 kHz, 10-Pin, MSOP

Download LTC3704EMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

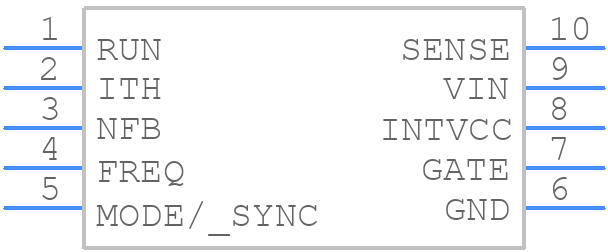

LTC3704EMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3704EMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom
3D Models
LTC3704EMS#PBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP-ren2
click to zoom

LTC3704EMS#PBF Details

  • Manufacturer Part Number:

    LTC3704EMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3704EMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3704EMS#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate.
  • To ensure the LTC3704EMS#PBF is operating within its recommended operating conditions, make sure the input voltage is within the specified range (2.7V to 5.5V), the output current is within the specified range (up to 2A), and the operating temperature is within the specified range (-40°C to 125°C).
  • The LTC3704EMS#PBF has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum current and voltage simultaneously.
  • Yes, the LTC3704EMS#PBF is suitable for high-reliability and high-temperature applications. It's qualified to the automotive AEC-Q100 standard and has a junction temperature range of -40°C to 125°C, making it suitable for use in harsh environments.
  • To troubleshoot issues with the LTC3704EMS#PBF, start by checking the input voltage, output current, and operating temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for noise and oscillations on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3704EMS#PBF Overview

Use the download button to access the LTC3704EMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
