LTC3704EMS#TRPBF - Analog Devices

Description: 0.05 A SWITCHING CONTROLLER, 1000 kHz SWITCHING FREQ-MAX, 10 Pin Plastic SMT

Download LTC3704EMS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

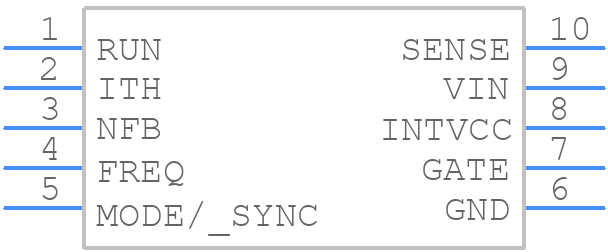

LTC3704EMS#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3704EMS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP-10
click to zoom
3D Models
LTC3704EMS#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSOP-10
click to zoom

LTC3704EMS#TRPBF Details

  • Manufacturer Part Number:

    LTC3704EMS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    0.05 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3704EMS#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3704EMS#TRPBF involves separating the analog and digital grounds, using a solid ground plane, and placing the input capacitors close to the IC. Additionally, the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
  • The LTC3704EMS#TRPBF requires a single 3.3V or 5V power supply. The power sequencing requirement is to power up the VIN pin first, followed by the VCC pin. The power-down sequence should be reversed. It's also recommended to use a low-ESR capacitor on the VIN pin to filter out noise.
  • The LTC3704EMS#TRPBF has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the IC, use a heat sink if necessary, and avoid blocking the airflow around the IC. Also, minimize the power dissipation by optimizing the circuit design and using a low-dropout regulator.
  • To troubleshoot issues with the LTC3704EMS#TRPBF, start by verifying the power supply voltages, checking for proper connections and soldering, and ensuring the input capacitors are properly sized. Use an oscilloscope to check the output voltage waveforms and verify the switching frequency. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the LTC3704EMS#TRPBF is a switching regulator and can generate electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke on the input lines. Additionally, use a low-pass filter on the output voltage and ensure the output capacitors are properly sized to filter out high-frequency noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3704EMS#TRPBF Overview

Use the download button to access the LTC3704EMS#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
