LTC3735EG#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3735EG#PBF - DC/DC CONTROLLER, INTEL, 1%, 36SSOP

Download LTC3735EG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

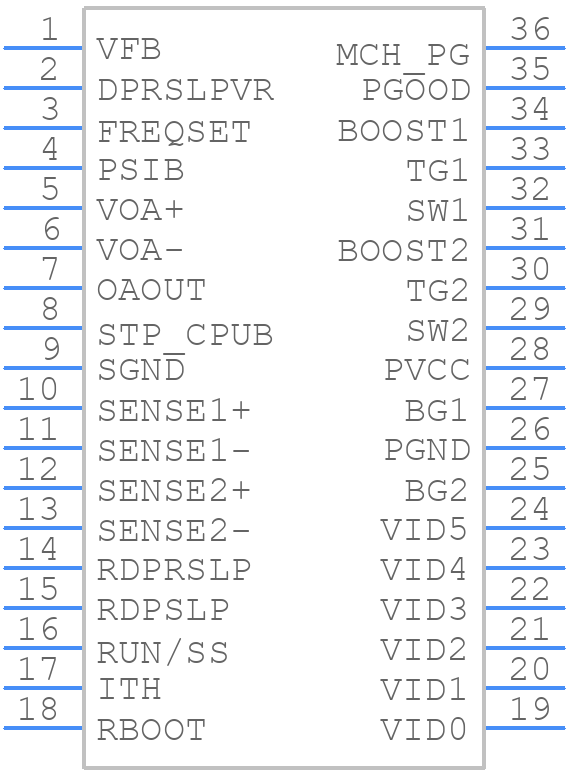

Symbol
LTC3735EG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3735EG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G (36-Lead SSOP)
click to zoom
3D Models
LTC3735EG#PBF - Analog Devices - 3D model - Small Outline Packages - G (36-Lead SSOP)
click to zoom

LTC3735EG#PBF Details

  • Manufacturer Part Number:

    LTC3735EG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM, LEAD FREE, PLASTIC, SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1640 (G36)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.7 TO 1.708 V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    7 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    5 A

  • Output Voltage-Max:

    1.708 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    610 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LTC3735EG#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LTC3735EG#PBF is -40°C to 125°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet. This includes powering up the VIN pin first, followed by the VCC pin, and then configuring the device through the I2C interface.
  • For optimal performance and noise reduction, it's recommended to follow the layout and routing guidelines provided in the datasheet and application notes. This includes keeping the power and ground planes separate, using short and wide traces for high-current paths, and minimizing the distance between the device and the power supply.
  • To troubleshoot issues with the LTC3735EG#PBF, start by reviewing the datasheet and application notes to ensure proper configuration and operation. Then, use a logic analyzer or oscilloscope to monitor the device's I2C interface and power supply lines. Check for any signs of noise, oscillation, or voltage drops that may be causing the issue.
  • The LTC3735EG#PBF is a high-reliability device, but it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application. Additionally, consider using redundant or fail-safe design techniques to mitigate any potential risks or failures.
