LTC3784MPUFD#PBF - Analog Devices

Description: 60V PolyPhase Synchronous Boost Controller with PassThru

Download LTC3784MPUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

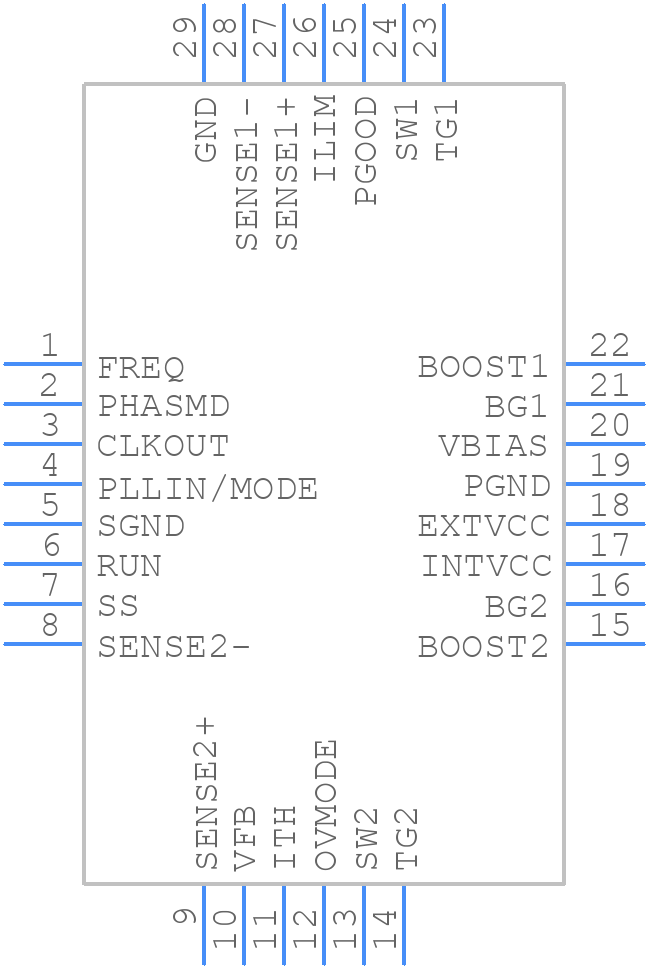

Symbol
LTC3784MPUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3784MPUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LTC3784MPUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UFD 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LTC3784MPUFD#PBF Details

  • Manufacturer Part Number:

    LTC3784MPUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    60 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    900 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LTC3784MPUFD#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3784 is 36V, but it's recommended to keep it below 30V for reliable operation.
  • The inductor selection depends on the output current, switching frequency, and output voltage. A good starting point is to use an inductor with a value between 1.5uH to 3.3uH, and a saturation current rating above the maximum output current.
  • The SYNC pin allows the user to synchronize the switching frequency of the LTC3784 with an external clock signal, which can be useful in noise-sensitive applications or when multiple converters need to be synchronized.
  • The output voltage of the LTC3784 can be set using the FB pin and a resistive divider network. The resistors should be chosen such that the voltage at the FB pin is equal to the desired output voltage divided by the feedback factor (typically 0.8V).
  • The maximum output current of the LTC3784 depends on the input voltage, output voltage, and inductor selection. Typically, it can deliver up to 2A of output current, but this can be limited by the thermal performance of the device and the PCB design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3784MPUFD#PBF Overview

Use the download button to access the LTC3784MPUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC37, or try a keyword search, such as Switching Regulator or Controllers
