LTC3803IS6-3#TRMPBF - Analog Devices

Description: Switching Voltage Regulators Const Freq C Mode Fly DC/DC Cntr in SOT

Download LTC3803IS6-3#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

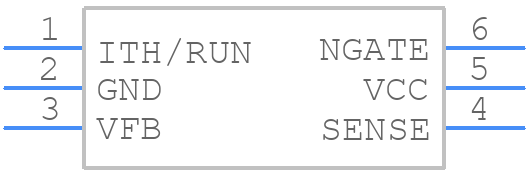

LTC3803IS6-3#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3803IS6-3#TRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - LTC3803IS6-3#TRMPBF-
click to zoom
3D Models
LTC3803IS6-3#TRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - LTC3803IS6-3#TRMPBF-
click to zoom

LTC3803IS6-3#TRMPBF Details

  • Manufacturer Part Number:

    LTC3803IS6-3#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1 MM HEIGHT, LEAD FREE, PLASTIC, MO-193, TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    8.3 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    8 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.35 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    330 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

LTC3803IS6-3#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3803 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • The choice of input and output capacitors for the LTC3803 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LTC3803 can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to derate the device's performance and ensure proper thermal management in high-temperature applications.
  • Yes, the LTC3803 is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for use in high-reliability applications such as aerospace and defense.
  • To troubleshoot issues with the LTC3803, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Check the input and output voltage and current levels, and ensure that they are within the recommended operating range. Also, check for any signs of overheating or thermal stress. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, or contact Analog Devices' technical support team for assistance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3803IS6-3#TRMPBF Overview

Use the download button to access the LTC3803IS6-3#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
