LTC3805EMSE-5PBF - Analog Devices

Description: VIN and VOUT Limited Only by External Components n 4.5V Undervoltage Lockout Threshold n Adjustable Slope Compensation n Adjustable Overcurrent Protection with Automatic Restart n Adjustable Operating Frequency (70kHz to 700kHz) With One External Resistor n Synchronizable to an External Clock n ±1.5% Reference Accuracy n Only 100mV Current Sense Voltage Drop n RUN Pin with Precision Threshold and Adjustable Hysteresis n Programmable Soft-Start with One External Capacitor n Low Quiescent Current

Download LTC3805EMSE-5PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

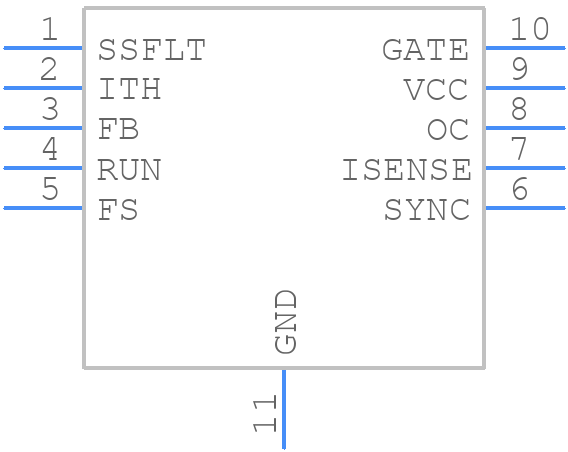

LTC3805EMSE-5PBF - Analog Devices - PCB symbol
