LTC3805IMSE-5#PBF - Analog Devices

Description: Linear Technology LTC3805IMSE-5#PBF, DC-DC Controller, 10μA, 8.8 V Flyback, 700 kHz, 10-Pin, MSOP

Download LTC3805IMSE-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

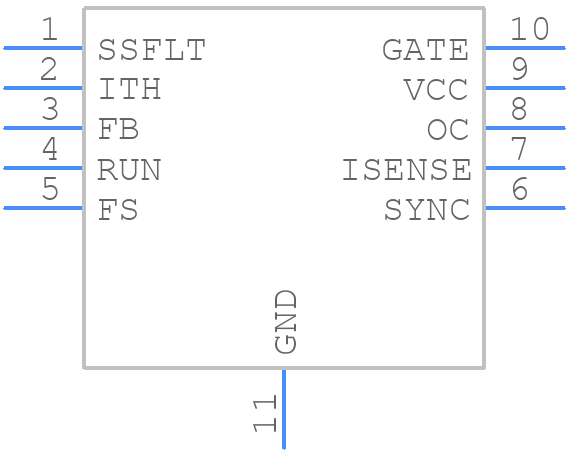

Symbol
LTC3805IMSE-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3805IMSE-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package-ren2
click to zoom
3D Models
LTC3805IMSE-5#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package-ren2
click to zoom

LTC3805IMSE-5#PBF Details

  • Manufacturer Part Number:

    LTC3805IMSE-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    8.9 V

  • Input Voltage-Min:

    4.15 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    700 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3805IMSE-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3805 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the feedback resistors should be chosen to ensure that the loop gain is less than 1 at the crossover frequency.
  • The maximum ambient temperature range for the LTC3805 is -40°C to 125°C. However, the junction temperature should not exceed 150°C.
  • Yes, the LTC3805 is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LTC3805, start by checking the input and output voltages, and the feedback loop. Ensure that the component values are correct and that the PCB layout is correct. Use an oscilloscope to check for oscillations or other anomalies. Consult the datasheet and application notes for more information.
