LTC3824EMSE#PBF - Analog Devices

Description: 60V Step-Down Controller 40uA IQ MSOP10 LTC3824EMSE#PBF, Buck Controller, 2.5A, 60 V Step-Down, 600 kHz, 10-Pin, MSOP

Download LTC3824EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

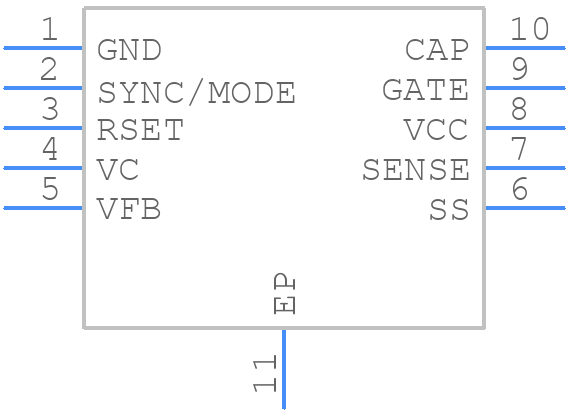

Symbol
LTC3824EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3824EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE(MSOP)
click to zoom
3D Models
LTC3824EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE(MSOP)
click to zoom

LTC3824EMSE#PBF Details

  • Manufacturer Part Number:

    LTC3824EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    460 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3824EMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3824EMSE is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 38V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage should be monitored and adjusted as needed to maintain stability.
  • The maximum output current that the LTC3824EMSE can deliver is 4A, but it's recommended to operate within the specified output current range of 0A to 3A for optimal performance and to prevent overheating.
  • The output voltage of the LTC3824EMSE can be programmed using an external resistor divider network connected to the VFB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The SYNC pin on the LTC3824EMSE is used to synchronize the switching frequency of multiple devices in a system. By connecting the SYNC pins of multiple devices together, the switching frequencies can be synchronized, reducing electromagnetic interference (EMI) and improving system performance.
