LTC3829IFE#PBF - Analog Devices

Description: Switching Voltage Regulators 3-Phase, Synchronous Regulators with Diffamp

Download LTC3829IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

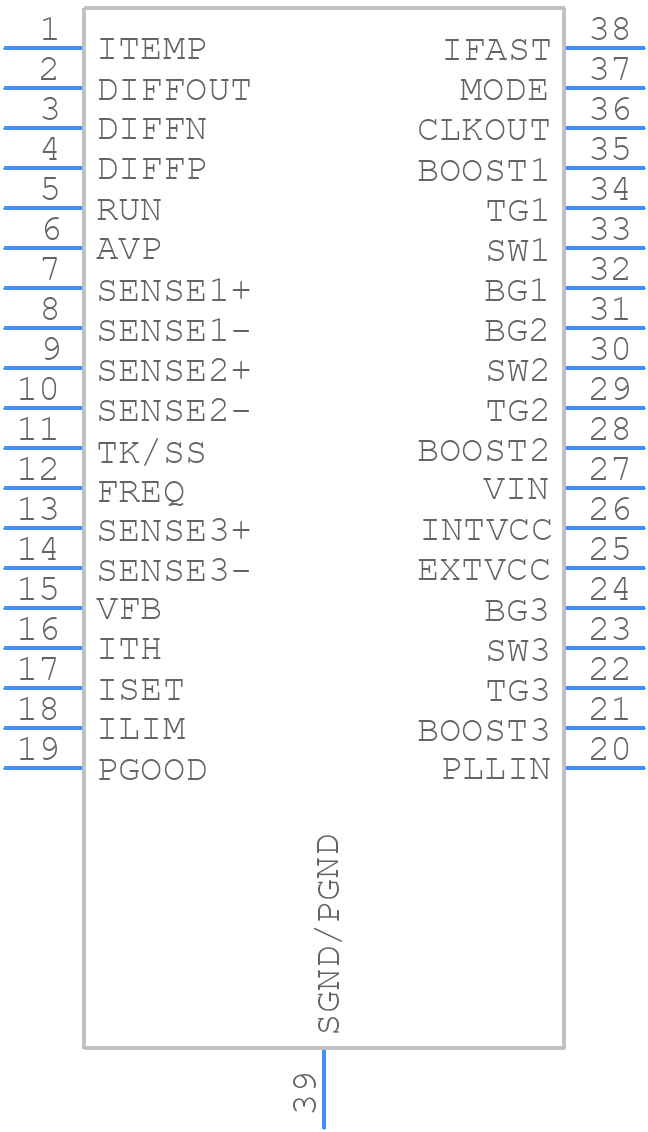

LTC3829IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3829IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3829IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3829IFE#PBF Details

  • Manufacturer Part Number:

    LTC3829IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.02 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3829IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3829IFE involves keeping the high current paths short and wide, using multiple vias to connect the GND pins to a solid ground plane, and placing the input capacitors close to the VIN pins. A 4-layer board with a solid ground plane is recommended. Refer to the LTC3829IFE demo board layout for a reference design.
  • The compensation network for the LTC3829IFE involves selecting the right values for the resistors and capacitors. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements. The LTC3829IFE demo board provides a reference design for the compensation network.
  • The maximum ambient temperature for the LTC3829IFE is 85°C, but it can be derated to 70°C for high reliability applications. The device can operate up to 150°C junction temperature, but the ambient temperature should be derated accordingly to ensure reliable operation.
  • The LTC3829IFE is rated for a maximum input voltage of 60V, but it can be used in high voltage applications with proper design considerations. The device can be configured to operate in a high voltage mode by using an external voltage divider and a voltage clamp to protect the device from overvoltage.
  • To ensure stability, the LTC3829IFE requires a minimum output capacitance of 10uF, and the output voltage should be decoupled from the input voltage using a capacitor. The device also requires a compensation network to stabilize the feedback loop. Refer to the datasheet and application notes for more information on stability considerations.
