LTC3833EUDC#TRPBF - Analog Devices

Description: Switching Voltage Regulators Fast Acc Buck DC/DC Cntr w/ Diff Out Sen

Download LTC3833EUDC#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

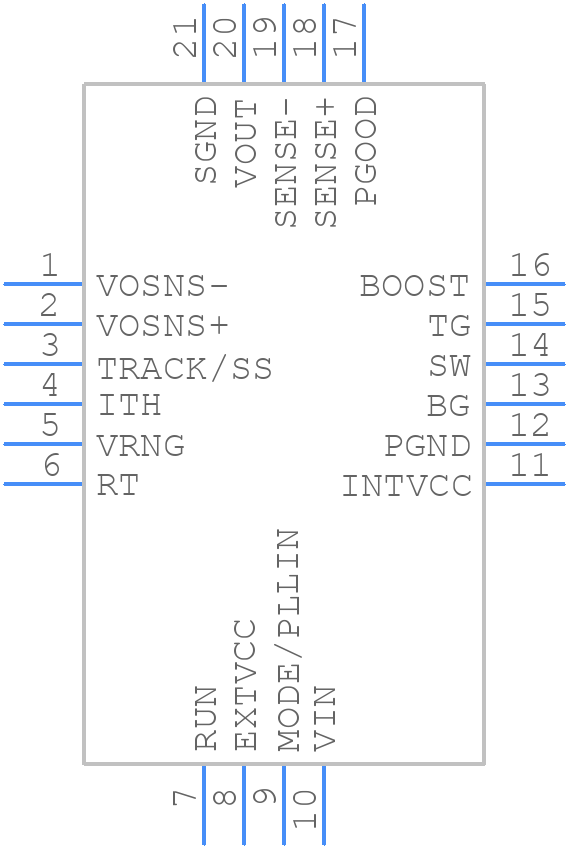

Symbol
LTC3833EUDC#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3833EUDC#TRPBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm)
click to zoom
3D Models
LTC3833EUDC#TRPBF - Analog Devices - 3D model - Quad Flat No-Lead - UDC Package 20-Lead Plastic QFN (3mm × 4mm)
click to zoom

LTC3833EUDC#TRPBF Details

  • Manufacturer Part Number:

    LTC3833EUDC#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1742

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3833EUDC#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC3833EUDC is 36V, but it's recommended to operate within the specified input voltage range of 4.5V to 36V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the feedback resistors, and the output voltage stability can be improved by adding a capacitor in parallel with the feedback resistors.
  • The maximum output current that the LTC3833EUDC can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and reliability.
  • To protect the LTC3833EUDC from overheating, it's essential to provide adequate heat sinking, ensure good airflow, and operate the device within the specified temperature range of -40°C to 125°C. Additionally, the device can be protected from overheating by using thermal monitoring and shutdown features.
  • The EN (enable) pin on the LTC3833EUDC is used to enable or disable the device. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power standby modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC3833EUDC#TRPBF Overview

Use the download button to access the LTC3833EUDC#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
