LTC3851IGN#PBF - Analog Devices

Description: Buck Regulator Positive Output Step-Down DC-DC Controller IC 4V ~ 38V -40°C ~ 125°C (TJ) 16-SSOP

Download LTC3851IGN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

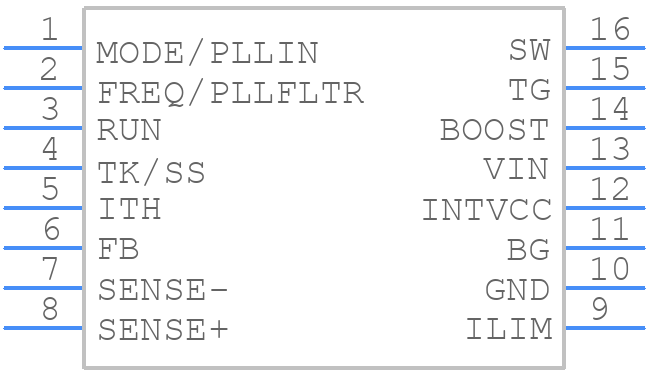

LTC3851IGN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3851IGN#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)_2025
click to zoom
3D Models
LTC3851IGN#PBF - Analog Devices - 3D model - Small Outline Packages - GN Package 16-Lead Plastic SSOP (Narrow .150 Inch)_2025
click to zoom

LTC3851IGN#PBF Details

  • Manufacturer Part Number:

    LTC3851IGN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1641 (GN16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.88 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.05 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    790 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LTC3851IGN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3851IGN#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the power and ground traces separate.
  • The choice of input and output capacitors for the LTC3851IGN#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. X5R or X7R ceramic capacitors are good options.
  • The LTC3851IGN#PBF can operate in ambient temperatures up to 125°C, but the maximum junction temperature should not exceed 150°C. It's recommended to use a heat sink or a thermal pad to ensure proper heat dissipation.
  • Yes, the LTC3851IGN#PBF is suitable for high-reliability and automotive applications. It's built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability in harsh environments.
  • To troubleshoot issues with the LTC3851IGN#PBF, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Check the input and output capacitors for proper selection and placement. Also, verify that the input voltage is within the recommended range and that the output is not overloaded. Use an oscilloscope to check for oscillation or instability, and consult the datasheet and application notes for further guidance.
