LTC3859AEFE#TRPBF - Analog Devices

Description: Low IQ, Triple Output, Buck/Buck/Boost Synchronous Controller with Improved Burst Mode Operation

Download LTC3859AEFE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

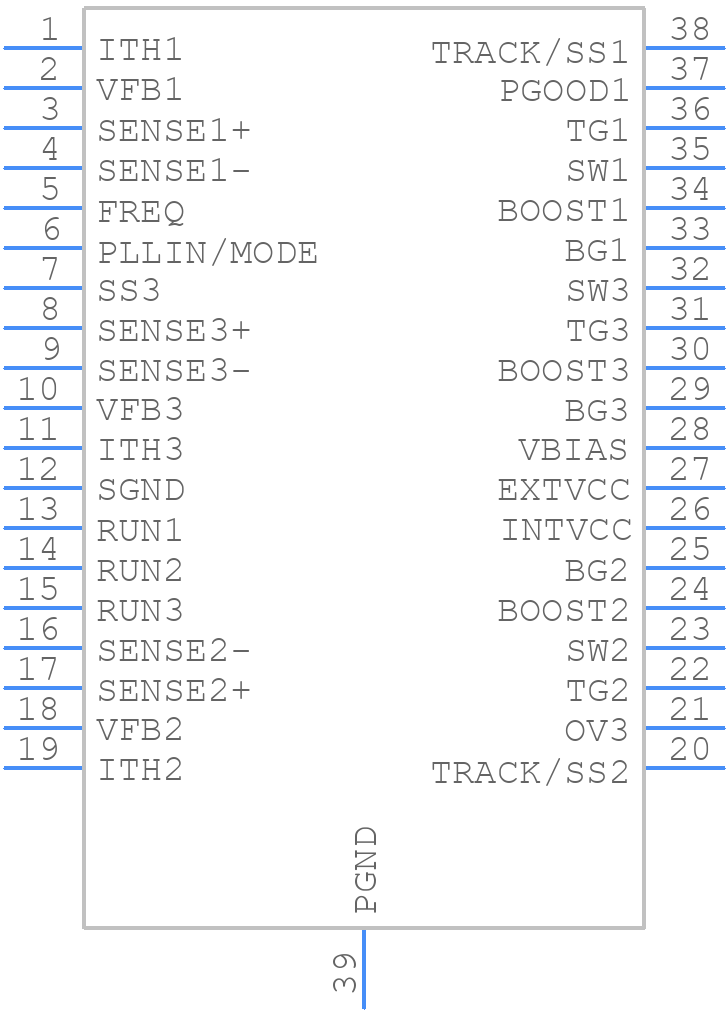

LTC3859AEFE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3859AEFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3859AEFE#TRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3859AEFE#TRPBF Details

  • Manufacturer Part Number:

    LTC3859AEFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 24V

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    5.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    835 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LTC3859AEFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3859AEFE involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the IC. A 4-layer board with a dedicated power plane is recommended. Refer to the datasheet's layout guidelines and application notes for more details.
  • Choose input capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors or film capacitors are good options. The datasheet recommends a minimum capacitance of 10uF, but a larger value may be needed depending on the input voltage and output current requirements.
  • The maximum ambient temperature for the LTC3859AEFE is 85°C, but the junction temperature (TJ) should not exceed 125°C. Ensure proper thermal design and heat sinking to keep the junction temperature within the specified range.
  • Yes, the LTC3859AEFE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is available in a variety of grades, including the 'E' grade for extended temperature range (-40°C to 125°C). However, ensure that the specific grade and packaging meet the requirements of your application.
  • To troubleshoot issues with the LTC3859AEFE, start by verifying the PCB layout, component selection, and input/output connections. Check for proper decoupling, input filtering, and output loading. Use an oscilloscope to monitor the input/output waveforms and look for signs of oscillation or instability. Refer to the datasheet's troubleshooting section and application notes for more guidance.
