Part Image

LTC3859EFEPBF - Analog Devices

Description: Dual Buck Plus Single Boost Synchronous Controllers n Outputs Remain in Regulation Through Cold Crank Down to 2.5V n Low Operating IQ: 55μA (One Channel On) n Wide Bias Input Voltage Range: 4.5V to 38V n Buck Output Voltage Range: 0.8V ≤ VOUT ≤ 24V n Boost Output Voltage Up to 60V n RSENSE or DCR Current Sensing n 100% Duty Cycle for Boost Synchronous MOSFET n Phase-Lockable Frequency (75kHz to 850kHz) n Programmable Fixed Frequency (50kHz to 900kHz) n Selectable Continuous, Pulse-Skipping or Low

Download LTC3859EFEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

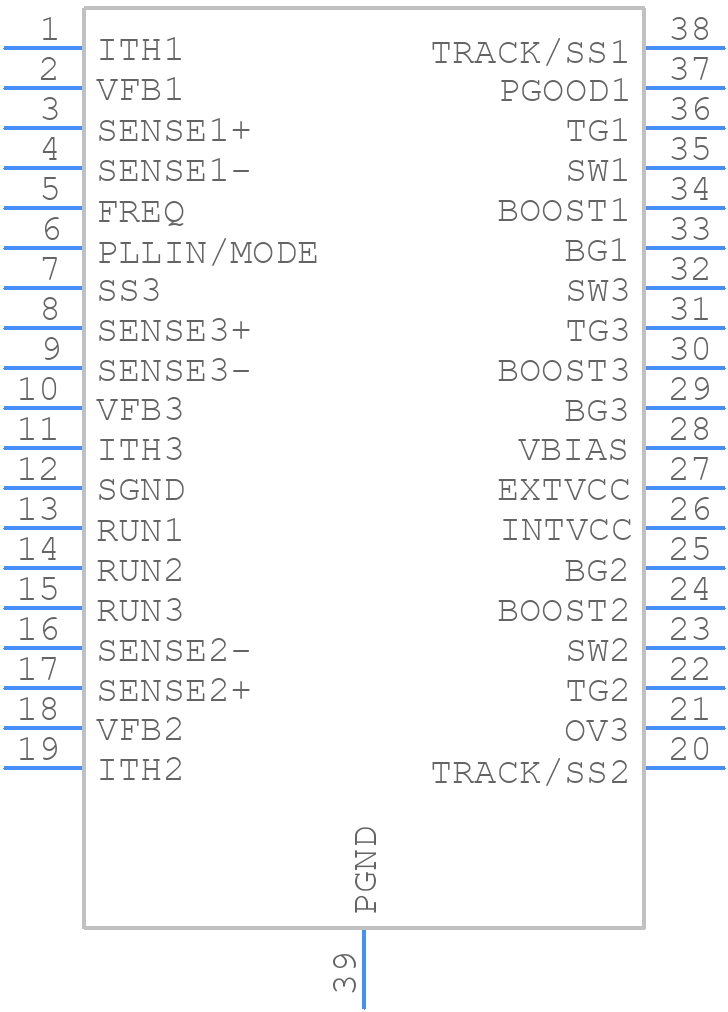

LTC3859EFEPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3859EFEPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom
3D Models
LTC3859EFEPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LTC3859EFEPBF
  • Part Number LTC3859EFEPBF
  • Manufacturer Analog Devices
  • Pin Count 39
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1772 Rev C) Exposed Pad Variation AA
  • Released Date Jan 11, 2017
  • Last Modified Date May 17, 2025 4:32 AM UTC
  • Pinout / Pin List Click Here (Member Only)

LTC3859EFEPBF Details

  • Manufacturer Part Number:

    LTC3859EFEPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3859EFEPBF Overview

Use the download button to access the LTC3859EFEPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
