LTC3863EMSE#TRPBF - Analog Devices

Description: Switching Voltage Regulators 60V L IQ Inv DC/DC Cntr

Download LTC3863EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

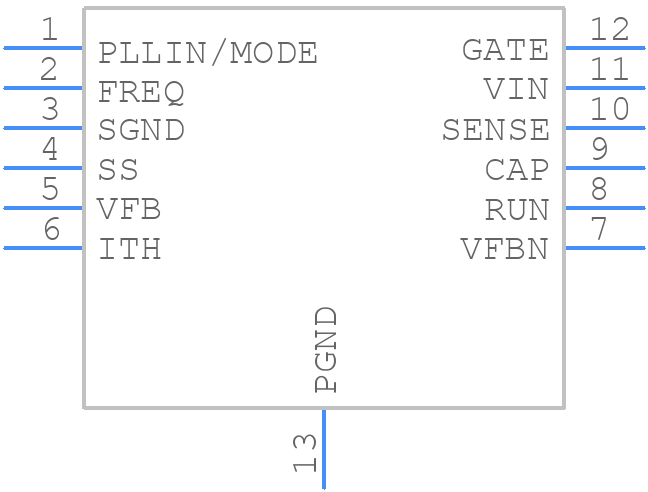

Symbol
LTC3863EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3863EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC3863EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC3863EMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC3863EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE OUTPUT MODE FROM -0.4V TO -150V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3863EMSE#TRPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC3863EMSE can be found in the application note AN140, which provides guidelines for layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10uF to 22uF. The datasheet provides more detailed guidance on input capacitor selection.
  • The maximum ambient temperature for the LTC3863EMSE is 85°C, but the device can operate up to 125°C with derating. The datasheet provides a thermal derating curve to help determine the maximum power dissipation at different ambient temperatures.
  • Yes, the LTC3863EMSE is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured with a high-reliability process. However, additional testing and validation may be required for specific applications.
  • Troubleshooting issues with the LTC3863EMSE typically involves checking the PCB layout, component values, and input/output voltage and current waveforms. The application note AN140 provides guidance on troubleshooting common issues, and Analog Devices' support team can also provide assistance.
