LTC3863HMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC3863HMSE#PBF - DC-DC CONVERTER, BUCK, ADJUSTABLE, 810KHZ, MSOP-12

Download LTC3863HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

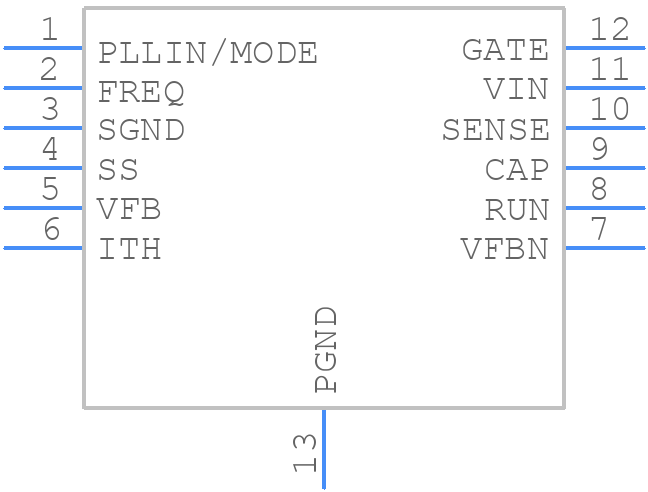

Symbol
LTC3863HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3863HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC3863HMSE#PBF
click to zoom
3D Models
LTC3863HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - LTC3863HMSE#PBF
click to zoom

LTC3863HMSE#PBF Details

  • Manufacturer Part Number:

    LTC3863HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE OUTPUT MODE FROM -0.4V TO -150V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    850 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC3863HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC3863HMSE#PBF involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The selection of input and output capacitors for the LTC3863HMSE#PBF depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LTC3863HMSE#PBF can operate at an ambient temperature range of -40°C to 125°C. However, the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to ensure good thermal design and heat sinking to keep the junction temperature within the specified range.
  • The LTC3863HMSE#PBF output voltage can be configured using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors and the internal reference voltage. A good starting point is to use the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The minimum input voltage required for the LTC3863HMSE#PBF to operate is 2.9V. However, the recommended input voltage range is 3.5V to 36V. Operating the device below the recommended input voltage range may affect its performance and efficiency.
