LTC3865EFETRPBF - Analog Devices

Description: n Dual, 180° Phased Controllers n 2-Pin VID Output Voltage Programming from 0.6V to 5V n High Effi ciency: Up to 95% n RSENSE or DCR Current Sensing n Phase-Lockable Fixed Frequency 250kHz to 770kHz n Adjustable Current Limit n Dual N-Channel MOSFET Synchronous Drive n Wide VIN Range: 4.5V to 38V Operation n Adjustable Soft-Start Current Ramping or Tracking n Output OV Protection With Reverse Current Limit n Power Good Output Voltage Monitor n 32-Pin 5mm × 5mm QFN and 38-Lead TSSOP Packages

Download LTC3865EFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

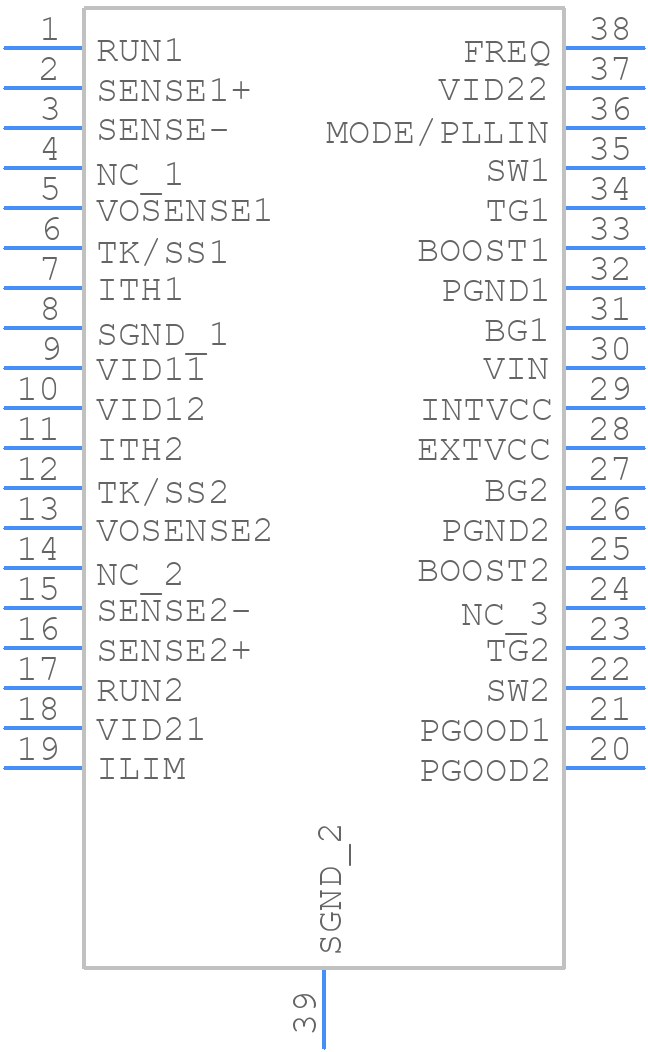

LTC3865EFETRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC3865EFETRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LTC3865EFETRPBF - Analog Devices - 3D model - Small Outline Packages - FE Package 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LTC3865EFETRPBF Details

  • Manufacturer Part Number:

    LTC3865EFETRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LTC3865EFETRPBF Overview

Use the download button to access the LTC3865EFETRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC38, or try a keyword search, such as Switching Regulator or Controllers
