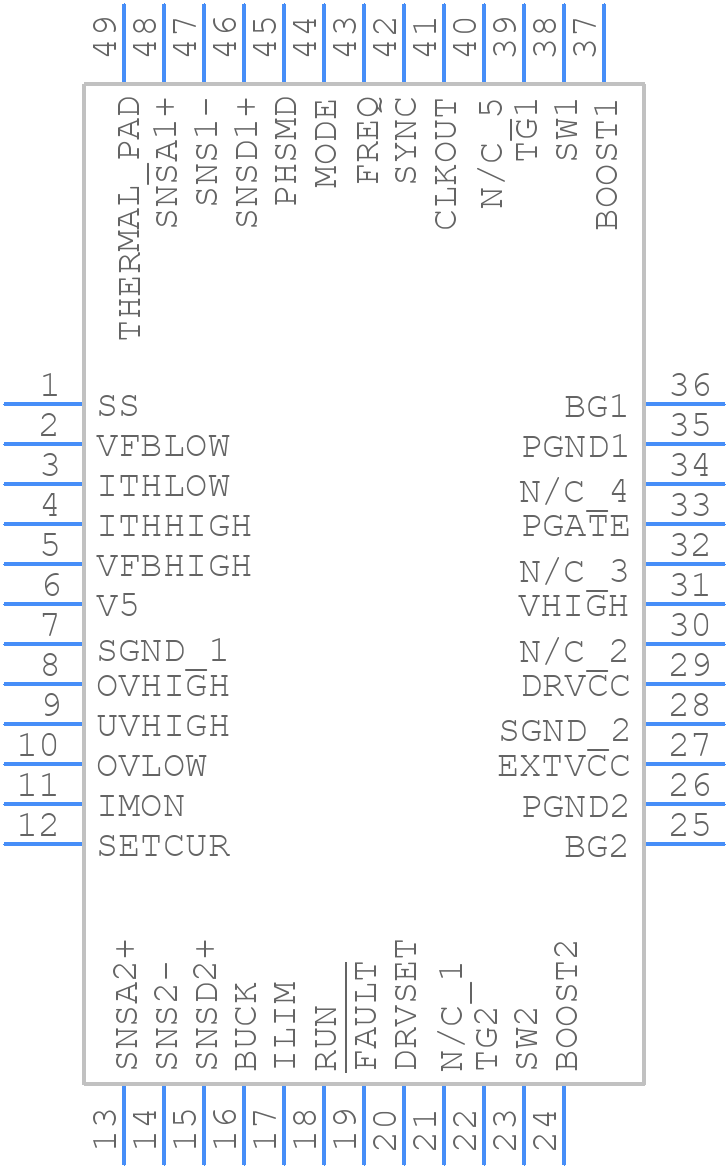

LTC3871ELXE#PBF - Analog Devices

LTC3871ELXE#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC3871?
  A good PCB layout for the LTC3871 involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer board with a dedicated power plane and a solid ground plane is recommended.
• How do I select the right inductor for my LTC3871 design?
  When selecting an inductor for the LTC3871, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, a DC resistance of less than 1 ohm, and a core material with low core loss (e.g., ferrite or powdered iron).
• What is the maximum ambient temperature range for the LTC3871?
  The LTC3871 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. For most applications, the maximum ambient temperature is around 85°C to 90°C, but this can be derated based on the device's power dissipation and the thermal resistance of the PCB and surrounding environment.
• Can I use the LTC3871 in a high-reliability or automotive application?
  Yes, the LTC3871 is available in a variety of grades, including the 'H' grade for high-reliability applications and the 'MP' grade for automotive applications. These grades have additional testing and screening to ensure higher reliability and robustness in harsh environments.
• How do I troubleshoot common issues with the LTC3871, such as oscillations or instability?
  Common issues with the LTC3871 can often be traced back to poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot, start by checking the PCB layout and ensuring that the high-frequency switching nodes are properly isolated. Next, verify that the input and output capacitors are properly selected and decoupled. Finally, check the inductor selection and ensure that it is properly sized for the application.
